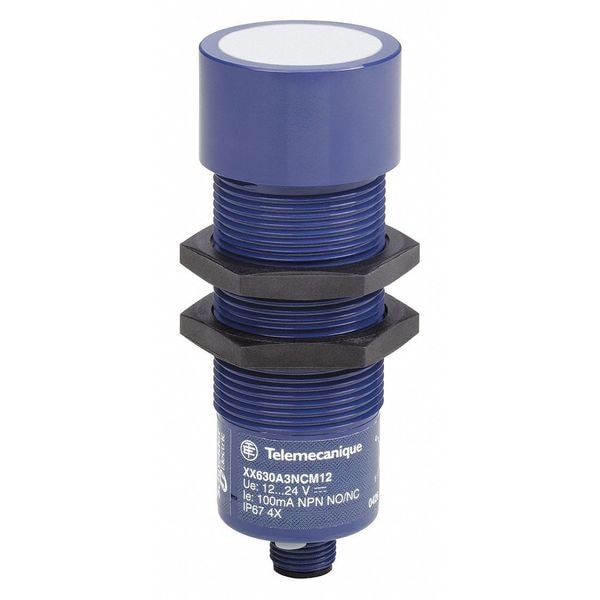

Sensor de nivel dual ultrasónico
| Item | Ultrasonic Dual Level Sensor |
|---|---|
| Beam Angle | 16° |
| Height | 44 mm |
| Width | 44 mm |
| Standards | IEC 60947-5-2 |
| Material | Plastic |
| Enclosure Material | ULTEM |
| Maximum Delay First Up | 1,000 msec |
| Threaded Length | 64.3 mm |
| Sensor Name | XX2 |
| Blind Zone | 0 to 300 mm |
| Minimum Size Of Detected Object | cylinder diameter 50.8 mm 4.732 m |
| Discrete Output Type | PNP |
| Marking | CE |
| Type Of Output Signal | discrete |
| [Sd] Sensing Range | 0.3 to 8 m |
| Maximum Differential Travel | 12.7 mm |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Discrete Output Function | 2 NO |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Maximum Delay Recovery | 1,000 msec |
| Ambient Air Temperature For Storage | -10-80°C |
| Product Certifications | UL || cCSAus |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Series Name | general purpose |
| Maximum Delay Response | 150 msec |
| Sensor Type | ultrasonic sensor |
| Maximum Voltage Drop | 1 V |
| Depth | 118 mm |
| Front Material | silicone |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Function Available | without synchronisation mode |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Deviation Angle From 90° Of Object To Be Detected | -5-5° |
| [Sa] Assured Operating Distance | 0.3-8 m teach mode |
| Status Led | output state 1 LED green/red (flashing)) || setting-up assistance 1 LED green/red (flashing)) || distance indication 1 LED yellow) |
| Wiring Technique | 4-wire |
| Repeat Accuracy | 0.0254 |
| Supply Voltage Limits | 10 to 28 V DC |
| Thread Type | M30 x 1.5 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Electrical Connection | 4 pins, male connector |
| Detection System | diffuse |
| [Sn] Nominal Sensing Distance | 8-8 m adjustable with teach push-button |
| Sensor Design | cylindrical M30 |
| Product Specific Application | for 2 levels monitoring |
| Transmission Frequency | 75 kHz |
| Ambient Air Temperature For Operation | -20-60°C |
| Current Consumption | 100 mA |
| Package Quantity | 1 |
