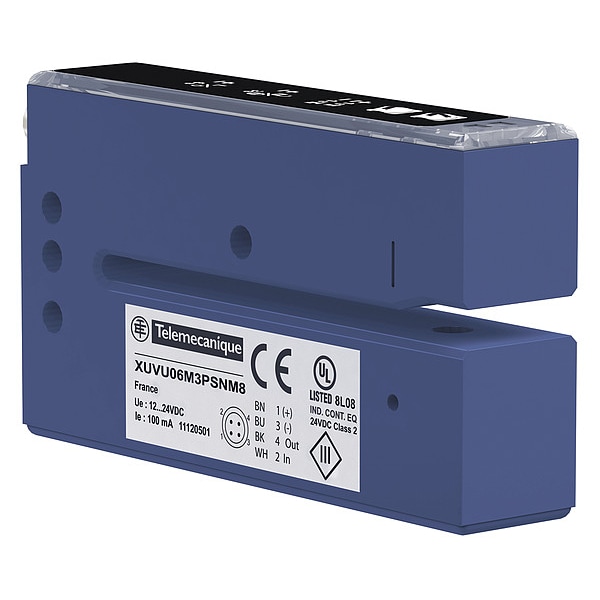

Sensor de etiquetas ultrasónico NPN M8 de 4 pines.
| Item | Ultrasonic Label Sensor Npn M8 4P |
|---|---|
| Accuracy | +/- 0.20 mm 120 m/min |
| Electrical Connection | 1 male connector M8, 4 pins |
| Width | 18 mm |
| Depth | 47 mm |
| Height | 92.5 mm |
| Material | Metal |
| Enclosure Material | zinc alloy |
| Supply Circuit Type | DC |
| Status Led | output state 1 LED yellow) || adjustment mode and keypad locking 1 LED red) |
| Lens Material | PC |
| Emission | ultrasonic |
| Sensor Design | fork |
| [Sn] Nominal Sensing Distance | 3-3 mm thru beam |
| Electronic Sensor Type | photo-electric sensor |
| Maximum Delay First Up | 30 msec |
| Passage Depth | 69 mm |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Series Name | Application packaging |
| Sensor Name | XUV |
| Supply Voltage Limits | 10-30 V DC |
| Minimum Distance Between Labels | 2 mm |
| Detection System | thru beam |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Maximum Delay Response | 0.3 msec |
| Minimum Label Length | 2 mm |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Maximum Passing Speed Of Object | 180 m/min |
| Maximum Delay Recovery | 0.3 msec |
| Type Of Output Signal | discrete |
| Setting-Up | numeric potentiometer |
| Discrete Output Type | NPN |
| Maximum Voltage Drop | <2 V closed state) |
| Ambient Air Temperature For Storage | -20-70°C |
| Output Type | solid state |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Product Certifications | CE || cULus |
| Ambient Air Temperature For Operation | 5-55°C |
| Wiring Technique | 4-wire |
| Product Specific Application | detection of transparent labels |
| Passage Width | 3 mm |
| Type Of Setting | with |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Switching Frequency | <= 1500 Hz |
| Package Quantity | 1 |
