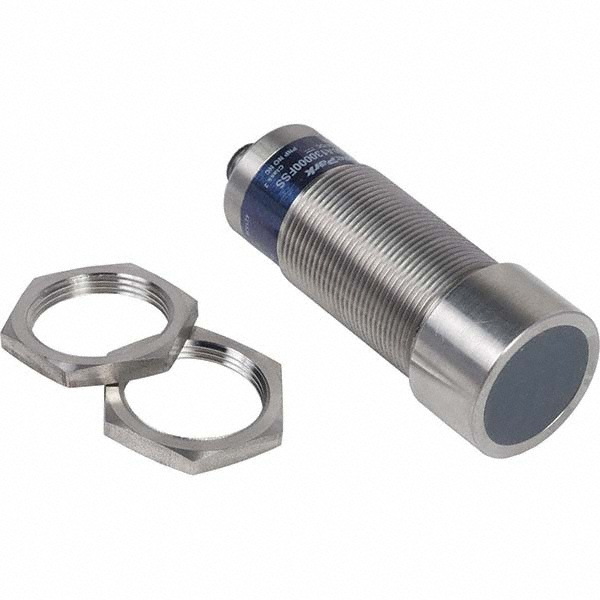

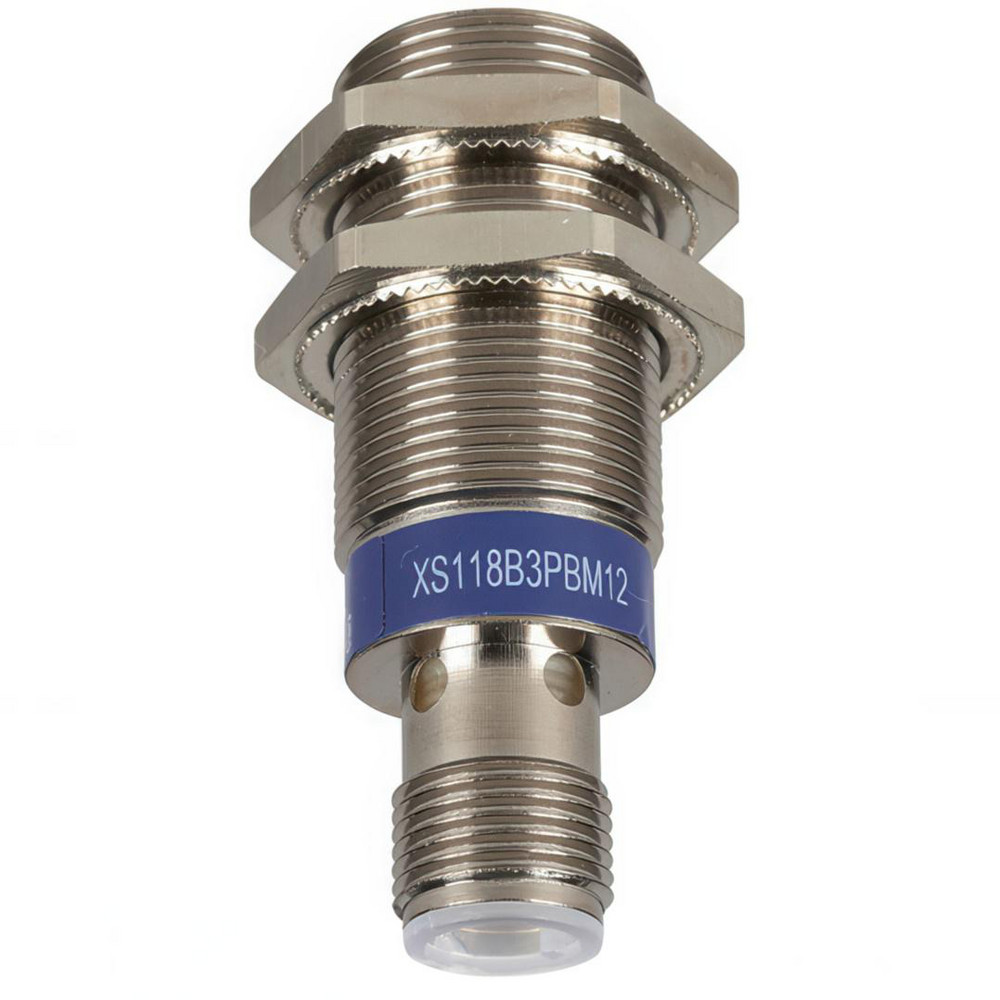

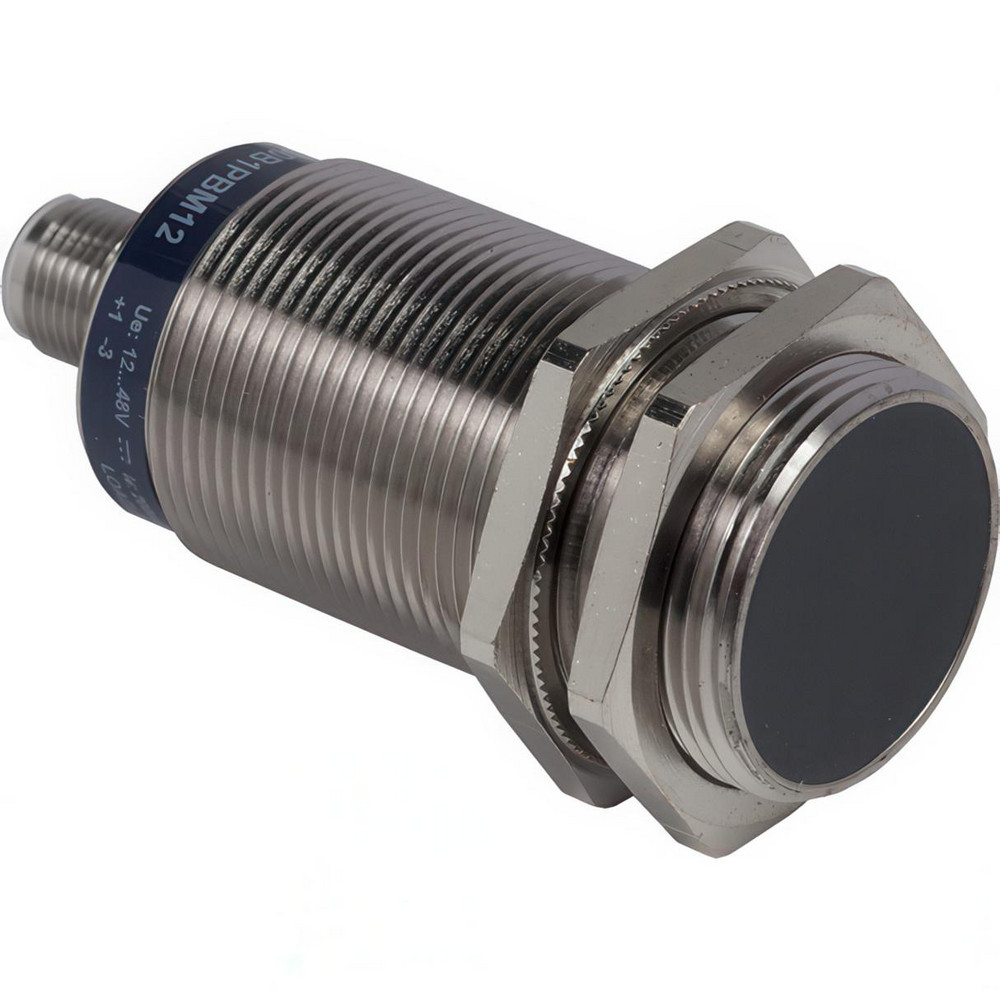

24 VDC Max, NPN & PNP, 80 Hz
| Sensor Type | Ultrasonic |
|---|---|
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | PNP; NPN |
| Connector Type | Four-Pin; Male; M12 |
| Detection Distance (Meters) | 0.15 |
| Minimum Voltage | 12Vdc |
| Maximum Voltage | 24V DC |
| Overall Length (mm) | 74.00 |
| Overall Width (mm) | 18.00 |
| Sensor Head Size | M12 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 100 |
| Overall Width/Diameter (mm) | 18 |
| Housing Material | ULTEM |
| Resistance Features | Water-Resistant |
| Standards | IEC 60947-5-2 |
| Response Frequency (Hz) | 80 |
| UNSPSC Code | 39122230 |
| undefined | undefined |
| MSC Number | MSC# 49922719 |
