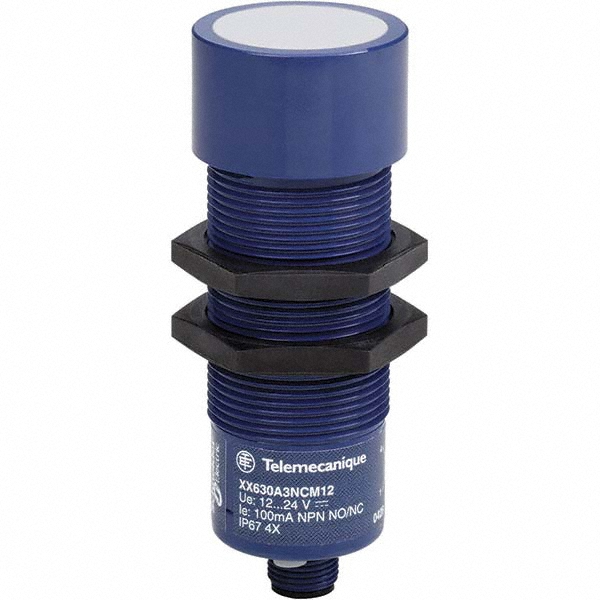

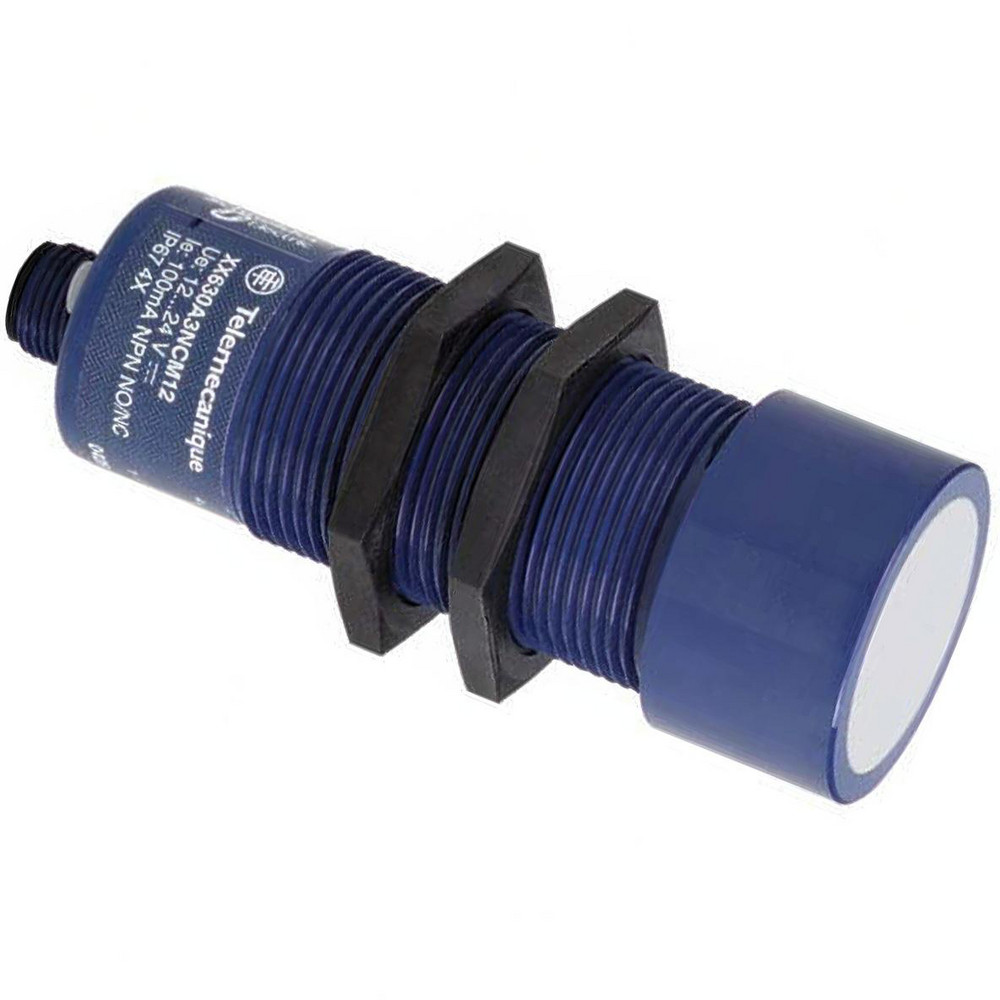

12 to 24 VDC Max, NPN & PNP, 4 Wires, 10 Hz
| Sensor Type | Ultrasonic |
|---|---|
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | PNP; NPN |
| Connector Type | Four-Pin; Male; M12 |
| Detection Distance (Meters) | 1.00 |
| Maximum Voltage | 12 - 24V DC |
| Overall Width (mm) | 35.00 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 100 |
| Overall Width/Diameter (mm) | 35 |
| Thread Size | M30x1.5 |
| Housing Material | ULTEM |
| Resistance Features | Shock-Resistant; Vibration-Resistant |
| Standards | IEC 60068-2-2; IEC 61000-4-3; IEC 61000-4-2; IEC 60068-2-6; IEC 61000-4-4; IEC 60529; RoHS Compliant; IEC 60947-5-2 |
| Number Of Wires | 4 |
| Response Frequency (Hz) | 10 |
| UNSPSC Code | 39122230 |
| MSC Number | MSC# 49800485 |
