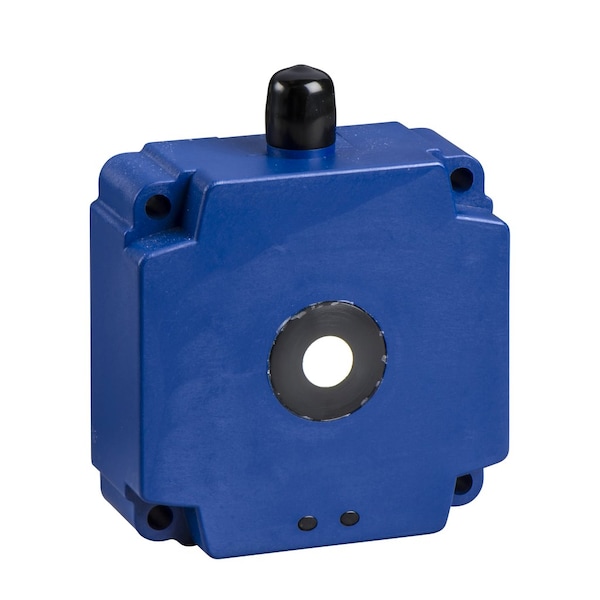

Sensor ultrasónico 80x80-Sn 1 m-NO-
| Item | Ultrasonic sensor 80x80 - Sn 1 m - NO - |
|---|---|
| Electrical Connection | male connector M12 4 pins |
| Width | 83 mm |
| Depth | 34 mm |
| Standards | IEC 60947-5-2 |
| Height | 80 mm |
| Material | Plastic |
| Sensor Name | XX8 |
| Maximum Delay First Up | 75 msec |
| Sensor Design | flat form 80 x 80 x 34 |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Detection System | diffuse |
| Front Material | epoxy |
| Maximum Voltage Drop | 1.5 V |
| Beam Angle | 7° |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Maximum Switching Current | 100 mA |
| Marking | CE |
| Ambient Air Temperature For Storage | -40-80°C |
| Maximum Differential Travel | 2.5 mm |
| Switching Frequency | <= 70 Hz |
| Product Certifications | UL || cCSAus |
| [Sd] Sensing Range | 0.1-1 m |
| Type Of Output Signal | discrete |
| Maximum Delay Recovery | 75 msec |
| Current Consumption | 60 mA |
| Deviation Angle From 90° Of Object To Be Detected | -7-7° |
| Transmission Frequency | 180 kHz |
| Series Name | general purpose |
| [Sn] Nominal Sensing Distance | 1-1 m adjustable with remote teach push-button |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| [Sa] Assured Operating Distance | 0.1-1 m teach mode |
| Discrete Output Type | PNP |
| Repeat Accuracy | 0.009 |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Status Led | setting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow) |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Ambient Air Temperature For Operation | 0 to 70 deg C |
| Maximum Delay Response | 15 msec |
| Enclosure Material | valox |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Sensor Type | ultrasonic sensor |
| Minimum Size Of Detected Object | cylinder diameter 50.8 mm 1 m |
| Supply Voltage Limits | 10-28 V DC |
| Blind Zone | 0-100 mm |
| Wiring Technique | 4-wire |
| Discrete Output Function | 1 NO |
| Package Quantity | 1 |
