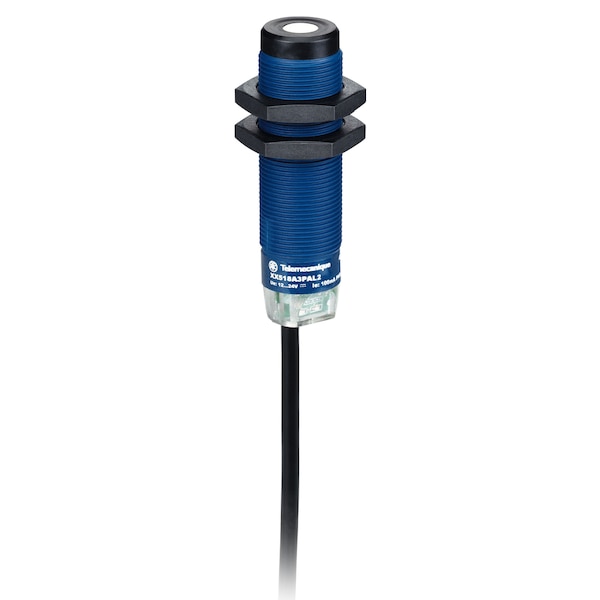

Sensor ultrasónico cilíndrico M18-Sn 0
| Item | Ultrasonic sensor cylindrical M18 - Sn 0 |
|---|---|
| Electrical Connection | cable, 2 m |
| Width | 18 mm |
| Depth | 64 mm |
| Standards | IEC 60947-5-2 |
| Material | Plastic |
| Height | 18 mm |
| Maximum Differential Travel | 2.5 mm |
| Sensor Design | cylindrical M18 |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Marking | CE |
| Ambient Air Temperature For Storage | -40-80°C |
| Thread Type | M18 x 1 |
| Discrete Output Function | 1 NO |
| Ambient Air Temperature For Operation | -20-65°C |
| Maximum Delay First Up | 100 msec |
| Blind Zone | 0-51 mm |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Repeat Accuracy | 0.007 |
| Maximum Delay Response | 10 msec |
| Sensor Type | ultrasonic sensor |
| [Sd] Sensing Range | 0.051-0.508 m |
| [Sn] Nominal Sensing Distance | 0.5-0.5 m adjustable by cabling |
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm 0.15 m |
| Wiring Technique | 3-wire |
| Sensor Name | XX5 |
| Threaded Length | 44 mm |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Maximum Voltage Drop | 1 V |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Deviation Angle From 90° Of Object To Be Detected | -7-7° |
| Supply Voltage Limits | 10-28 V DC |
| Switching Frequency | <= 40 Hz |
| Maximum Delay Recovery | 1,000 msec |
| [Sa] Assured Operating Distance | 0.051-0.508 m teach mode |
| Series Name | general purpose |
| Discrete Output Type | PNP |
| Detection System | diffuse |
| Type Of Output Signal | discrete |
| Beam Angle | 6° |
| Front Material | epoxy |
| Current Consumption | 40 mA |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Transmission Frequency | 300 kHz |
| Product Certifications | cCSAus || UL |
| Enclosure Material | valox |
| Status Led | supply on 1 LED green) || output state 1 LED yellow) |
| Package Quantity | 1 |
