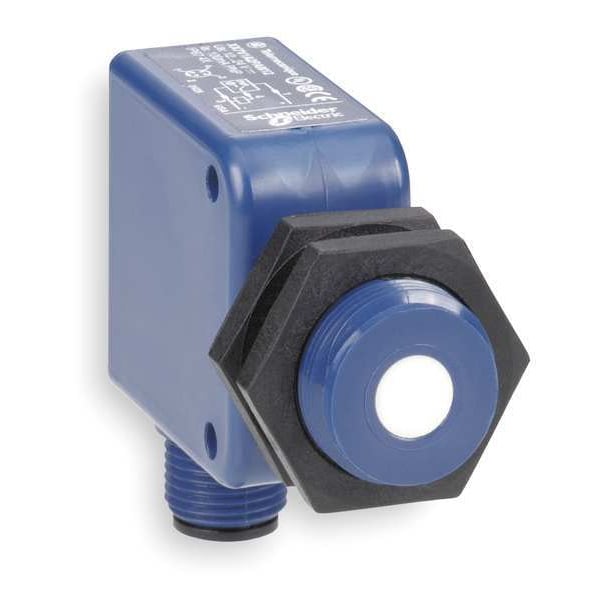

Sensor ultrasónico, PNP, 508 mm, 12 a 24 VCC.
| Item | Rectangular Ultrasonic Sensor |
|---|---|
| Circuit Type | NO |
| Length | 2.35 in |
| Width | 0.71 in |
| Depth | 0.71 in |
| Detecting Distance | 508 mm |
| Max. Load | 40 mA |
| Electrical Connection | 4 Pin M12 Male Connector |
| Power Required | 12 to 24V DC |
| IP Rating | 67 |
| Case Material | Plastic |
| Output | PNP |
| Operating Frequency | 300 kHz |
| Operating Temp. Range | -22 to 152 deg F |
| Response Time | 15 msec |
| Description/Special Features | Dual Mount Body Style |
| NEMA Rating | 4X |
| Standards | CE, RoHS, UL |
| Length (Straight Wireway) | 2.35 in |
| Material | Plastic |
| Type Of Sensing Window | adjustable |
| Beam Angle | 5° |
| Ambient Air Temperature For Operation | -30-70°C |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Minimum Size Of Detected Object | cylinder diameter 2.5 mm - up to 200 mm sensing distance |
| Maximum Switching Current | 100 mA (reverse polarity protection) |
| Blind Zone | 0-51 mm |
| Discrete Output Type | PNP |
| Series Name | Virtu VM1 |
| Wiring Technique | 4-wire |
| Marking | CE |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Device Short Name | VM1 |
| Transmission Frequency | 300 kHz |
| Product Certifications | UL |
| Ip Degree Of Protection | IP67 |
| [Sn] Nominal Sensing Distance | 508-508 mm |
| Discrete Output Function | 1 NO |
| Front Material | epoxy |
| Nema Degree Of Protection | NEMA 4X indoor use only) |
| Enclosure Material | valox |
| Sensor Type | ultrasonic sensor |
| Type Of Output Signal | discrete |
| Height | 43.7 mm |
| Status Led | output not active 1 LED green) |
| [Sd] Sensing Range | 50.8-508 mm |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| [Us] Rated Supply Voltage | 12...24 V DC overload and short-circuit protection |
| Ambient Air Temperature For Storage | -40-85°C |
| Repeat Accuracy | 0.0127 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Relative Humidity | 100-100 % without condensation |
| Supply Voltage Limits | 10-28 V DC |
| Current Consumption | 40 mA |
| [Sa] Assured Operating Distance | 50.8-508 mm remote teach push-button |
| Sensor Design | flat form + cylindrical M18 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Package Quantity | 1 |
