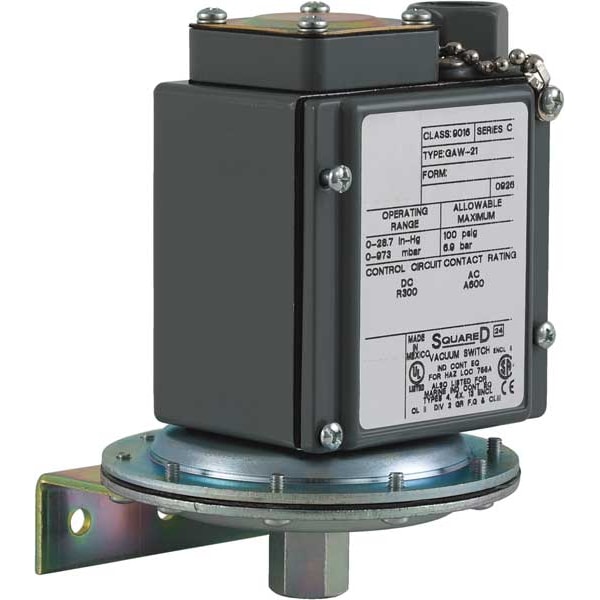

Interruptor de vacío, Estándar/Reversible, de 0 a 28.3"Hg.
| Item | Vacuum Switch |
|---|---|
| Series | 9016G |
| Differential | 0.8 to 9 inHg |
| Range | 0 to 28.3 inHg |
| Port Type | 1-Port 1/4-18 in FNPT |
| Contact Form | DPDT |
| Media Temp. Range | -14 Degrees to 250 Degrees F |
| Ambient Temp. Range | -10 Degrees to 185 Degrees F |
| Action | Standard |
| NEMA Rating | 13, 4, 4X |
| Standards | UL 508 |
| Features | (2) Thresholds, Adjustable Scale, Electromechanical |
| Electrical Connection | screw-clamp terminals AWG 22...AWG 12 |
| Media Temperature - Minimum | -40 Degrees F |
| Pressure Connection Type | 1/4-18" NPTF |
| Overall Width | 4.56 in |
| Pressure - Maximum | 100 psi |
| Overall Height | 6.45 in |
| Differential Pressure - Minimum | 0.83 psi |
| Media Temperature - Maximum | 250 Degrees F |
| Number of Pressure Connection Ports | 1 |
| Operating Temperature - Maximum | 185 Degrees F |
| Overall Depth | 4.56 in |
| Operating Temperature - Minimum | 10 deg F |
| NEMA Enclosure Rating | 13, 4, 4X |
| Differential Pressure - Maximum | 3.63 psi |
| Manufacturer Warranty Length | 18 mo |
| Local Signalling | without |
| Pressure Actuator | diaphragm nitrile (Buna-N) |
| Depth | 4.56 in |
| Materials In Contact With Fluid | 3M Scotch-Grip 847 rubber and gasket adhesive || zinc plated steel || nitrile (Buna-N) |
| Vibration Resistance | 2 gn 40-150 Hz)IEC 68-2-6 |
| Vacuum Sensor Size | 28.3 inHg |
| Product Or Component Type | electromechanical vacuum switch |
| Operating Position | any position |
| Shock Resistance | 50 gn IEC 58-2-27 |
| Scale Type | adjustable differential |
| Fluid Connection Type | 0.25 inch 18 NPTF UL 508 |
| Terminal Block Type | 8 screw terminals |
| Device Application | sensitive control application |
| Mechanical Durability | 5,000,000 cycle |
| Product Certifications | UL listed file E12158 CCN NKPZ and CCN NTHT || CSA file LR25490 |
| Local Display | without |
| Ambient Air Temperature For Storage | 10-185°F |
| Maximum Pressure | 100 psi |
| Electrical Circuit Type | control circuit |
| Line Rated Current | 3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation || 0.11 A 250 V DC R300 NEMA rating designation |
| Width | 4.56 in |
| Cable Entry | 0.5 inch NPT conduit entrance |
| Setting | internal |
| Ambient Air Temperature For Operation | 10-185°F |
| Repeat Accuracy | 0.004 |
| Vacuum Switch Type Of Operation | regulation between two thresholds |
| Contacts Type And Composition | silver nickel contacts, 2, DPDT, Form ZZ, snap action |
| Approx Adjustable Differential At Mid Range | 1.7-7.4 inHg |
| Nema Degree Of Protection | NEMA 4/4X/13 UL 698 |
| Controlled Fluid | air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F) |
| Device Short Name | 9016G |
| Height | 6.45 in |
| Range On Decreasing Vacuum | 0-28.3 inHg |
| Maximum Operating Rate | 120 cyc/mn |
| Enclosure Material | die cast aluminium alloy 380 |
| Short-Circuit Protection | 10 A cartridge overload and short-circuit protection gL |
| Package Quantity | 1 |
