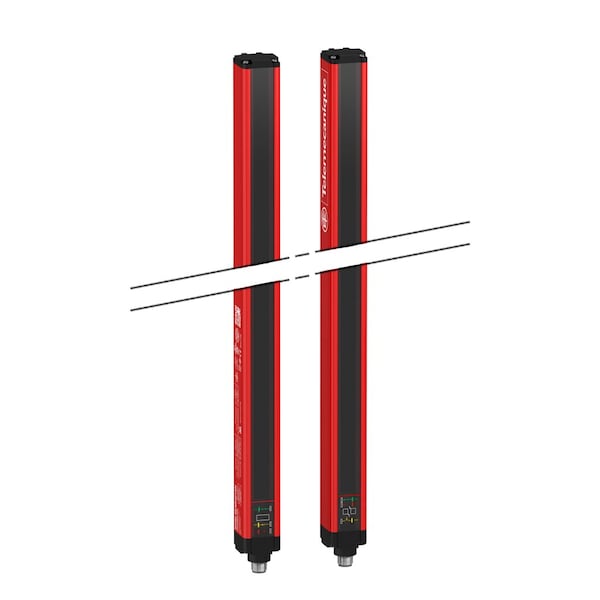

Tipo XUSL 2: Para protección corporal - 2 piezas.
| Item | XUSL type 2 - For body protection - 2 Be |
|---|---|
| Measurement Range | 0 to 12 m, 0 to 4 m |
| Proximity Sensing Method | Transmitter-Receiver System; IR LED 950 nm |
| Proximity Sensor Power Requirement | 24V DC |
| Proximity Sensor Output Circuit Type | DC; 2 safety outputs OSSD solid-state PNP arc suppression |
| Max. Detecting Distance | 4 m |
| Proximity Sensor Electrical Connection | Male Connector, M12 5 Pins Transmitter; 1 Male Connector M12 8 Pins Receiver |
| Basic Proximity Sensor Case Material | Aluminium Casing, Polycarbonate Front Panel, Polypropylene End Caps |
| Includes | Adjustable Mounting Bracket(S); 1 Receiver(S); 1 Transmitter(S); 1 User Guide With Certificate Of Conformity On CD-ROM |
| IP Rating | IP67, IP65 |
| Standards | EN/IEC 61496-2; TÃœV; cULus; CE; type 2 IEC 61496-1; category 2 EN/ISO 13849-1; SIL 1 IEC 61508; SILCL 1 IEC 62061; PL = c EN/ISO 13849-1; power supply IEC 61496-1; power supply IEC 60204-1 |
| Max. Current Load | 2 A, 42 mA |
| Description/Special Features | Muting Through External Safety Module Xpslcmut1160; LED Display Of Operating Modes And Faults; 1 Multi-Colour LED Transmitter; 2 Dual Colour Leds Receiver; Automatic, Manual Start |
| Operating Temp. Range | -30-55 Degrees C |
| Application | for body protection |
| Vibration Resistance | 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1 |
| Maximum Voltage Drop | <0.5 V |
| Shock Resistance | 10 gn 16 ms IEC 61496-1 |
| Storage Temp. Range | -35-70 °C |
| Package Quantity | 1 |
