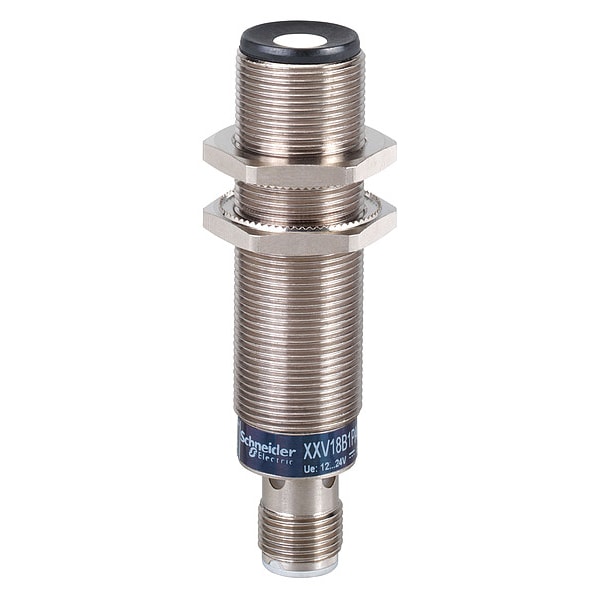

Sensor de proximidad ultrasónico PNP NO M12 Xxv18
| Item | Xxv18 Ultrasonic Proximity Pnp No M12 |
|---|---|
| Width | 18 mm |
| Height | 18 mm |
| Material | Metal |
| Enclosure Material | Brass |
| Standards | IEC 60947-5-2 |
| Beam Angle | 10° |
| Wiring Technique | 3-wire |
| Product Certifications | cULus |
| Discrete Output Type | PNP |
| Front Material | epoxy |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Marking | CE |
| Type Of Output Signal | discrete |
| Status Led | output state 1 LED yellow) |
| Repeat Accuracy | 0.015 |
| Maximum Delay Recovery | 4 msec |
| Transmission Frequency | 360 kHz |
| Vibration Resistance | +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Maximum Differential Travel | 3 mm |
| Ambient Air Temperature For Operation | 0 to 60°C |
| Thread Type | M18 x 1 |
| Minimum Size Of Detected Object | cylinder diameter 2 mm 0.02 m |
| [Sn] Nominal Sensing Distance | 0.05-0.05 m fixed |
| Threaded Length | 51 mm |
| Ambient Air Temperature For Storage | -40-80°C |
| Depth | 75 mm |
| Maximum Voltage Drop | 2 V |
| [Sd] Sensing Range | 0.003 to 0.05 m |
| Detection System | diffuse |
| Series Name | general purpose |
| Electrical Connection | 4 pins, male connector |
| [Sa] Assured Operating Distance | 0.003-0.05 m |
| Deviation Angle From 90° Of Object To Be Detected | -8-8° |
| Sensor Type | ultrasonic sensor |
| Maximum Switching Current | 200 mA overload and short-circuit protection |
| Discrete Output Function | 1 NO |
| Sensor Name | XXV |
| Supply Voltage Limits | 10 to 36 V DC |
| Maximum Delay First Up | 5 msec |
| Shock Resistance | 50 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Sensor Design | cylindrical M18 |
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Current Consumption | 15 mA |
| Maximum Delay Response | 4 msec |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Blind Zone | 0 to 3 mm |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Switching Frequency | <= 80 Hz |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
| Package Quantity | 1 |
