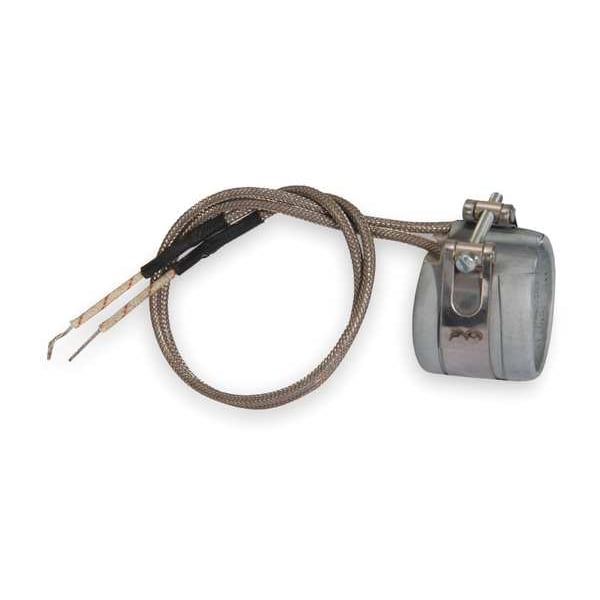

Band Heater, Steel, 1-1/2 In. Dia.
| Item | Band Heater |
|---|---|
| Watts | 250 |
| Amps | 1.04 |
| Heater Voltage | 240V |
| Watt Density | 45 W/sq in |
| Width Tolerance | +/-1/16 in |
| Max. Temp. | 900 deg F |
| Terminals | None |
| Termination | 12 in Lead Wire and 10 in SS Braid |
| Features | The Sinuated Formed Element Lends Itself to Lower Temperature and Watt Density Applications where High Watt Density Construction is not Required |
| Material | Mica Insulated |
| Inside Dia. | 1-1/2 in |
| Width | 1-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
