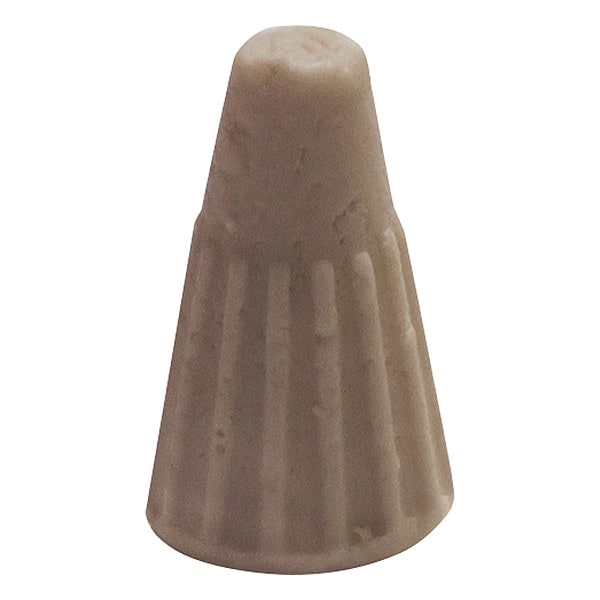

Ceramic Twist-on Wire Connector, , 2-18 To 2-14 Awg Wires
| Color | White |
|---|---|
| Min. Single Wire Size | 12 AWG |
| Max. Single Wire Size | 16 AWG |
| Series | 114 |
| Max. Voltage | 300 V AC |
| Wire Connector Style | Standard |
| Min. Wire Combination | (1) 14 AWG with (2) 12 AWG |
| Max. Wire Combination | (1) 16 AWG with (1) 14 AWG |
| Height | 1 in |
| Width | 0.7 in |
| Application | High Temperature |
| Item | Ceramic Wire Connector |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 1,200 deg F |
| Maximum Voltage | 300 V |
| Outside Diameter | 0.53 in |
| Overall Width | 0.7 in |
| Minimum Wire Combination | (2) 18 AWG |
| Overall Height | 1 in |
| Maximum Conductors | 2 |
| Compatible with Product Type | High Temperature |
| Maximum Operating Temperature | 1,200 deg F |
| Maximum Wire Combination | (2) 14 AWG |
| Maximum Single Wire Size | 14 AWG |
| Insulation Material | Porcelain |
| For Conductor Material | Copper, Aluminum |
| Minimum Single Wire Size | 18 AWG |
| Package Quantity | 1 |
