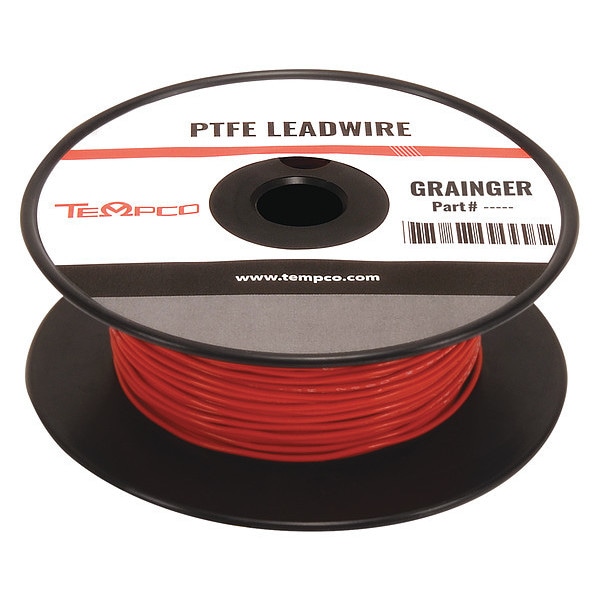

Este cable de plomo de alta temperatura fabricado con PTFE es ideal para aplicaciones que requieren resistencia a altas temperaturas. Con calibre 20 AWG, color rojo y una longitud de 100 pies, es perfecto para proyectos eléctricos industriales.
| Item | High Temp Lead Wire |
|---|---|
| Conductor Material | Silver Plated Copper |
| Trade Designation | PTFE |
| Length | 100 ft |
| Jacket Color | Red |
| Nominal Outside Dia. | 0.06 in |
| Voltage | 300 V |
| Insulation Material | PTFE |
| Conductor Design | Stranded |
| Temp. Rating | 392°F |
| Stranding | 19 x 32 |
| Wire Size | 20 AWG |
| Wire Color | Red |
| Standards | CSA AWM Class 1 Group A/B FT-1, UL1180 |
| Cable Type | PTFE |
| Max. Amps | 14 At Ambient Temp of 104 Degrees F/40 Degrees C |
| Series | Not Applicable |
| Conductor Size | 20 AWG |
| Number of Conductors | 1 |
| Temperature Rating - Maximum Dry | 392 deg F |
| Conductor Insulation Material | PTFE |
| Temperature Rating - Maximum Wet | 392 deg F |
| Conductor Insulation Color | Red |
| Nominal Outside Diameter | 0.06 in |
| Packaging | Spool |
| Number of Strands | 19 |
| Overall Length | 100 ft |
| Package Quantity | 1 |
