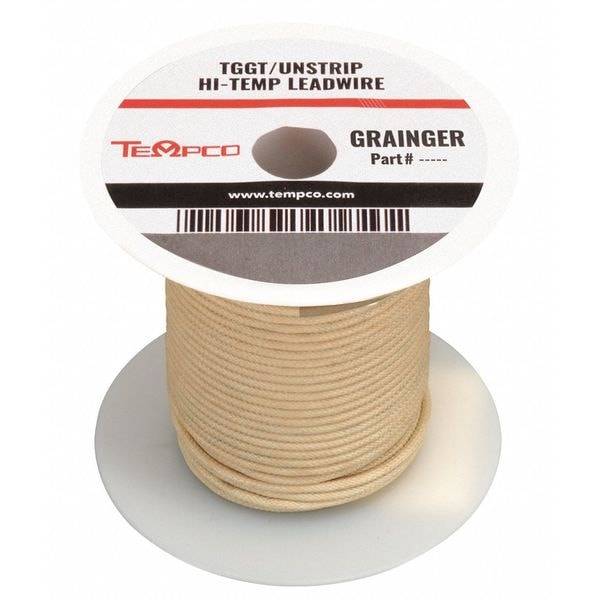

Cable de plomo de alta temperatura, TGGT, calibre 10 AWG, color natural, longitud de 250 pies. Ideal para aplicaciones de alta temperatura.
| Item | High Temp Lead Wire |
|---|---|
| Conductor Material | Nickel Plated Copper |
| Trade Designation | TGGT |
| Length | 250 ft |
| Jacket Color | Natural |
| Nominal Outside Dia. | 0.17 in |
| Voltage | 600 V |
| Insulation Material | PTFE, Fiberglass |
| Conductor Design | Stranded |
| Temp. Rating | 482°F |
| Stranding | 105 x 30 |
| Wire Size | 10 AWG |
| Wire Color | Natural |
| Standards | CSA AWM Class 1 Group A/B, UL5256 |
| Max. Amps | 73 At Ambient Temp of 104 Degrees F/40 Degrees C |
| Cable Type | TGGT |
| Temperature Rating - Maximum Dry | 482 deg F |
| Number of Strands | 105 |
| Nominal Outside Diameter | 0.17 in |
| Conductor Insulation Material | PTFE, Fiberglass |
| Packaging | Spool |
| Temperature Rating - Maximum Wet | 482 deg F |
| Number of Conductors | 1 |
| Series | Not Applicable |
| Conductor Size | 10 AWG |
| Overall Length | 250 ft |
| Conductor Insulation Color | Natural |
| Package Quantity | 1 |
