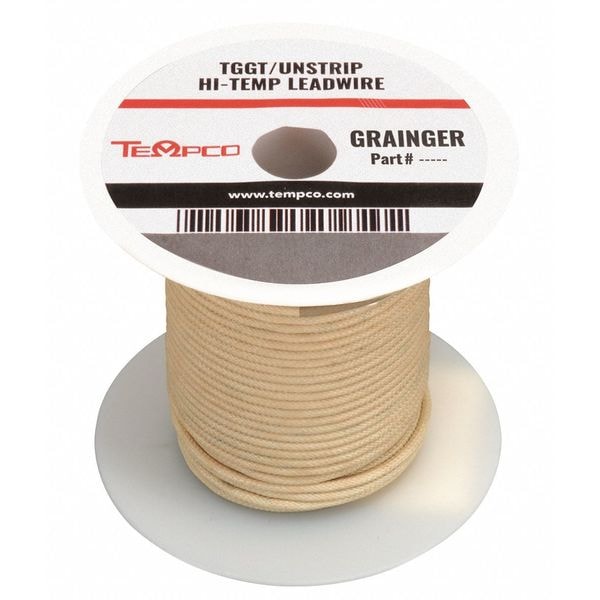

Este alambre para temperatura alta Tempco TGGT de calibre 16 AWG en color Natural es ideal para aplicaciones que requieren resistencia a altas temperaturas. Con una longitud de 100 pies, es perfecto para proyectos que necesitan durabilidad y confiabilidad.
| Item | High Temp Lead Wire |
|---|---|
| Conductor Material | Nickel Plated Copper |
| Trade Designation | TGGT |
| Length | 100 ft |
| Jacket Color | Natural |
| Nominal Outside Dia. | 0.1 in |
| Voltage | 600 V |
| Insulation Material | PTFE, Fiberglass |
| Conductor Design | Stranded |
| Temp. Rating | 482°F |
| Stranding | 26 x 30 |
| Wire Size | 16 AWG |
| Wire Color | Natural |
| Standards | CSA AWM Class 1 Group A/B, UL 5256 |
| Cable Type | TGGT |
| Max. Amps | 26 At Ambient Temp of 104 Degrees F/40 Degrees C |
| Nominal Outside Diameter | 0.1 in |
| Number of Conductors | 1 |
| Conductor Insulation Color | Natural |
| Conductor Size | 16 AWG |
| Temperature Rating - Maximum Wet | 482 deg F |
| Overall Length | 100 ft |
| Number of Strands | 26 |
| Temperature Rating - Maximum Dry | 482 deg F |
| Series | Not Applicable |
| Packaging | Spool |
| Conductor Insulation Material | PTFE, Fiberglass |
| Package Quantity | 1 |
