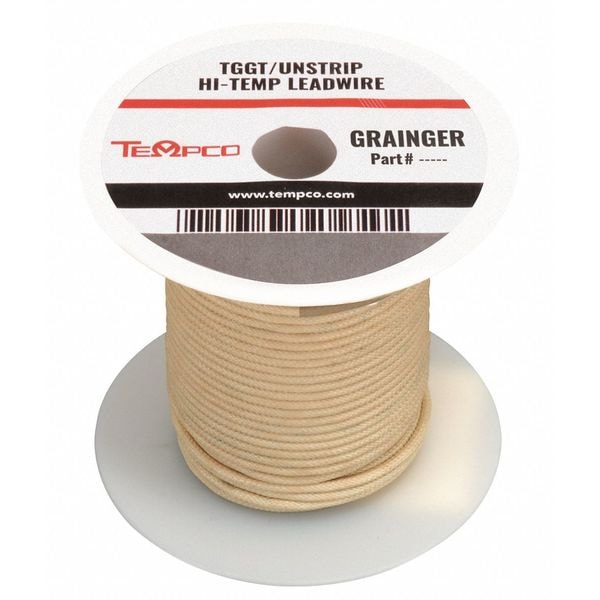

High Temp Lead Wire, TGGT, 18 AWG, Natural, 100 ft
| Item | High Temp Lead Wire |
|---|---|
| Conductor Material | Nickel Plated Copper |
| Trade Designation | TGGT |
| Length | 100 ft |
| Jacket Color | Natural |
| Nominal Outside Dia. | 0.09 in |
| Voltage | 600 V |
| Insulation Material | PTFE, Fiberglass |
| Temp. Rating | 482°F |
| Stranding | 19 x 30 |
| Wire Size | 18 AWG |
| Wire Color | Natural |
| Standards | CSA AWM Class 1 Group A/B, UL 5256 |
| Cable Type | TGGT |
| Max. Amps | 20 At Ambient Temp of 104 Degrees F/40 Degrees C |
| Package Quantity | 1 |
