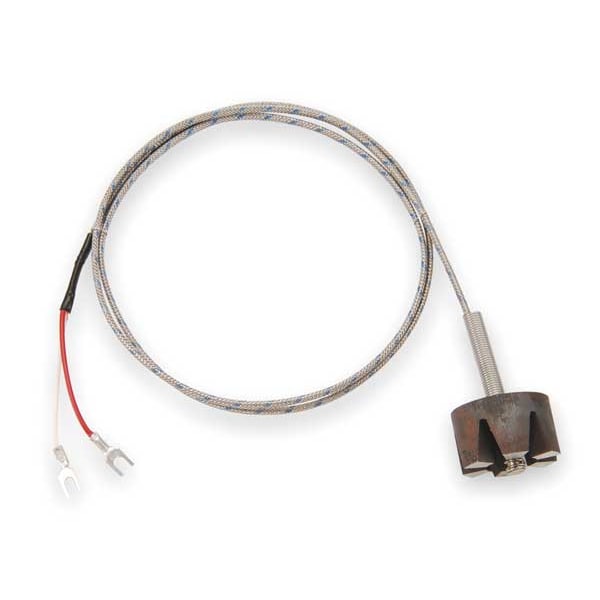

Termocupla magnética, Tipo J, Cable de 72 pulgadas.
| Item | Magnet Thermocouple |
|---|---|
| Grounded / Ungrounded | Grounded |
| Plug or Connector Type | Fork Terminal |
| Thermocouple Type | J |
| Material | 304 Stainless Steel |
| Construction | Spring-loaded thermocouple Attached to 6-pole Magnet |
| Error Accuracy (%) | +/-0.75 |
| Thermocouple Element | 20 AWG |
| Insulation | PTFE |
| Lead Length | 12 ft |
| Error Accuracy (Deg. C) | +/-2.2 |
| Temp. Limit (Deg. F) | 752 |
| Probe Length | 1-1/4 in |
| Connector Type | Spade Lugs |
| Probe Size | 1 1/4 in |
| Maximum Wire Gauge | 0.25 mm |
| Maximum Temperature F | 1,400 deg F |
| Opening/Diameter | 1 1/4 in dia Magnet |
| Temperature Range | 32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C |
| Process Mounting | Surface Mount Magnet |
| Sensor Type | Thermocouple |
| Includes Thermowell | No |
| Accuracy | +/-2.2 Degrees C or +/-0.75% |
| Probe Sheath Material | Stainless Steel |
| Minimum Temperature F | 32 Degrees F |
| For Surfaces | Yes |
| For Liquids and Gels | No |
| For Gases | No |
| Minimum Temperature C | 0 Degrees C |
| Cable Material | FEP Teflon with Stainless Steel Braid |
| Junction Type | Grounded |
| For Air | No |
| Maximum Temperature C | 760 deg C |
| For Application | Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical |
| Cable Length | 12 ft |
| For Solids | Yes |
| Minimum Temperature °C | 0 Degrees C |
| Maximum Temperature °C | 760 deg C |
| Maximum Temperature °F | 1,400 deg F |
| Minimum Temperature °F | 32 Degrees F |
| Minimum Temperature °C | 0 Degrees C |
| Minimum Temperature °F | 32 Degrees F |
| Maximum Temperature °C | 760 deg C |
| Maximum Temperature °F | 1,400 deg F |
| Package Quantity | 1 |
