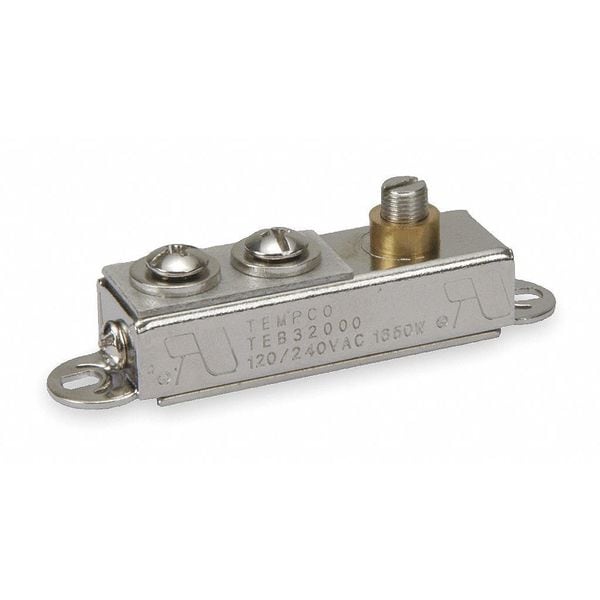

Process Thermostat, Open on Rise, Fixed 500 Degrees F, 120/240V AC
| Material | Steel |
|---|---|
| Switch Action | Open on Rise |
| Voltage | 120/240V AC |
| Sensor Type | Bonded Bi-Metal Strip |
| Switch Type | SPST |
| Color | Silver |
| Contact Rating Resistive @ 240V | 6.87 A |
| Overall Length | 2-9/16 in |
| Number of Switches | 1 |
| Control Range | Fixed 500 Degrees F |
| Agency Compliance | cUR |
| Contact Rating Resistive @ 120V | 13.75 A |
| Item | Process Thermostat |
| Full Load Amps @ 120VAC | 13.75 A |
| Includes | #6-32 Screws for Wiring to Unit |
| Thermostat Type | Process Thermostat |
| Mounting | Tabs with Holes |
| Inductive Amps @ 120V | 13.75 A |
| Application | Heat Only |
| Full Load Amps @ 240VAC | 6.87 A |
| Standards | cUR |
| Inductive Amps @ 240V | 6.87 A |
| Enclosure Type | Stainless Steel |
| Features | The Heat Sensitive Base Plate of the Thermostat Must be Mounted in Full Contact with the Heated Surface, Endurance 100, 000 Cycles |
| Control Type | Adjustable Screw |
| Electrical Connection Type | Screw Terminal |
| Switch Type/Action | Open, SPST on Rise |
| Maximum Operating Temperature | 570 deg F |
| Maximum Control Temperature | 500 deg F |
| Minimum Operating Temperature | 400 deg F |
| Setpoint Adjustability | Fixed Setpoint |
| Overall Height | 3/4 in |
| Dial Configuration | Numeric |
| Temperature Control Range | 500 Degrees F |
| Full Load Amps @ 120V AC | 13.75 A |
| Minimum Control Temperature | 500 deg F |
| Overall Width | 5/8 in |
| Operating Temperature Range | 400 to 570 deg F |
| Number of Poles | 1 |
| Full Load Amps @ 240V AC | 6.87 A |
| Product Type | Process Thermostat |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
