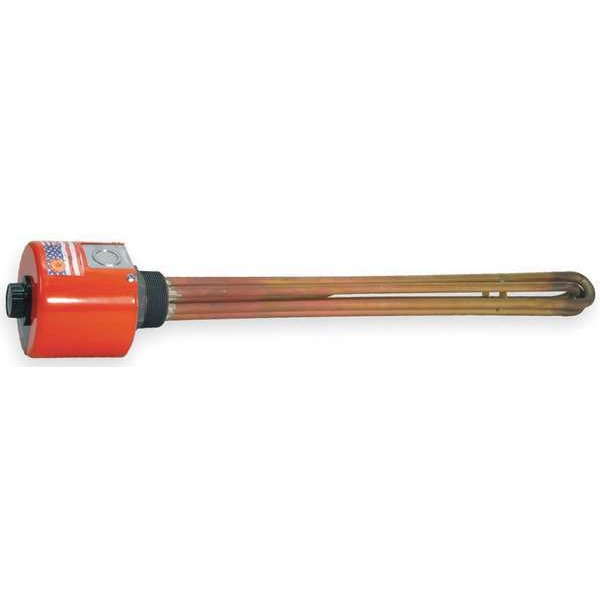

Screw Plug Immersion Heater, 12,000W, 480V
| Heater Voltage | 480 V AC |
|---|---|
| Watts | 12,000 |
| Watt Density | 44.04 W/sq in |
| Phase | 3 |
| Overall Length | 39-5/16 in |
| Control Range | 60 to 250 deg F |
| Screw Plug Material | Brass |
| Sheath Material | Copper |
| NPT | 2-1/2 in |
| Includes | Thermostat |
| Min. Immersion Depth | 32-1/4 in |
| Item | Screw Plug Immersion Heater |
| Enclosure Type | NEMA 1 |
| For Use With | Clean Water, Non-Corrosive Material |
| Special Information | Corrosion-Resistant Electrical Wiring Hardware, Recompacted Element Bends Restore Insulation Resistance After Forming, Silicone Resin Element Seal Standard |
| Standards | NEMA 1 Housing |
| Type | Screw Plug |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
