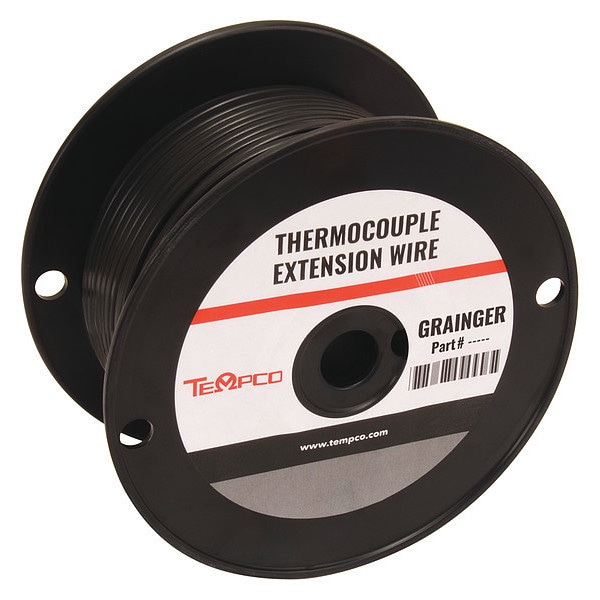

El Alambre de Extensión para Termopar Tempco Tipo JX es ideal para extender la longitud de su termopar de forma confiable. Con calibre 20AWG y construcción sólida, este alambre de 250 pies garantiza una transmisión precisa de las lecturas de temperatura.
| Item | Thermocouple Extension Wire |
|---|---|
| Wire Type | Type JX |
| Wire Length | 250 ft |
| Conductor Design | Solid |
| Insulation Material | PVC |
| Jacket Color | Black |
| Number of Conductors | 2 |
| Wire Size | 20 AWG |
| Insulation | PVC |
| Termination Type | None |
| Termination Type - Wire and Cable | None |
| Wire Type - Wire and Cable | JX |
| Insulation Material - Wire and Cable | PVC |
| Wire and Cable Item | Thermocouple Wire |
| Color Code | White Positive/Red Negative |
| Wire Size - Wire and Cable | 20 AWG |
| Length - Wire and Cable | 250 ft |
| Ambient Temp. Limits | 221 Degrees F |
| Solid / Stranded | Solid |
| Length | 250 ft |
| Wire Size (Wire and Cable) | 20 AWG |
| Length (Wire and Cable) | 250 ft |
| Termination Type (Wire and Cable) | None |
| Insulation Material (Wire and Cable) | PVC |
| Standards | ANSI MC96.1, ASTM E230 |
| Trade Designation | JX |
| Length (Straight Wireway) | 250 ft |
| Conductor Material | Constantan, Iron |
| Conductor Insulation Material | PVC |
| Conductor Insulation Color | Red, White |
| Overall Length | 250 ft |
| Thermocouple Type | Type JX |
| Conductor Size | 20 AWG |
| Temperature Rating - Maximum Wet | Not Applicable |
| Series | Not Applicable |
| Number of Strands | 1 |
| Trade Designation - Conductors | Not Applicable |
| Ampacity at Maximum Temperature | Not Applicable |
| Temperature Rating - Maximum Dry | 221 deg F |
| Packaging | Spool |
| Package Quantity | 1 |
