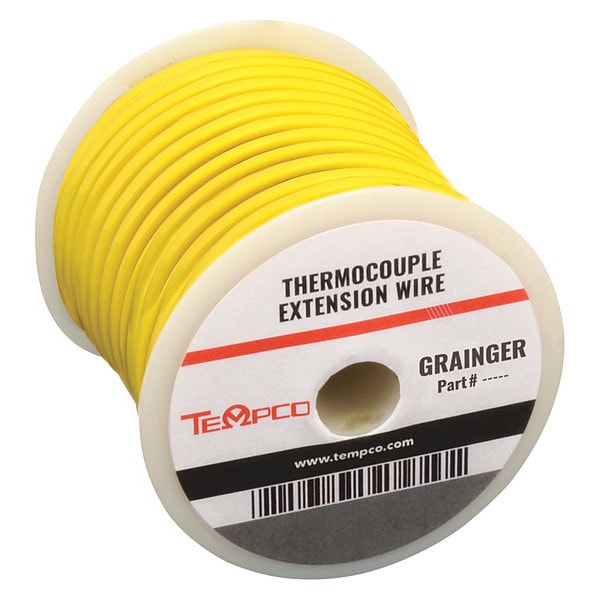

Cable de extensión para termopar Tempco, tipo KX, calibre 24AWG y 100 pies de longitud. Ideal para conectar termopares a equipos de medición
| Item | Thermocouple Extension Wire |
|---|---|
| Wire Type | Type KX |
| Wire Length | 100 ft |
| Conductor Design | Stranded |
| Insulation Material | PVC |
| Jacket Color | Yellow |
| Number of Conductors | 2 |
| Wire Size | 24 AWG |
| Color Code | Yellow Positive/Red Negative |
| Length - Wire and Cable | 100 ft |
| Termination Type | None |
| Length | 100 ft |
| Insulation | PVC |
| Wire Type - Wire and Cable | KX |
| Ambient Temp. Limits | 221 Degrees F |
| Wire Size - Wire and Cable | 24 AWG |
| Wire and Cable Item | Thermocouple Wire |
| Termination Type - Wire and Cable | None |
| Solid / Stranded | Stranded |
| Insulation Material - Wire and Cable | PVC |
| Wire Size (Wire and Cable) | 24 AWG |
| Insulation Material (Wire and Cable) | PVC |
| Length (Wire and Cable) | 100 ft |
| Termination Type (Wire and Cable) | None |
| Standards | ANSI MC96.1, ASTM E230 |
| Trade Designation | KX |
| Length (Straight Wireway) | 100 ft |
| Conductor Material | Alumel, Chromel |
| Ampacity at Maximum Temperature | Not Applicable |
| Trade Designation - Conductors | Not Applicable |
| Conductor Size | 24 AWG |
| Conductor Insulation Material | PVC |
| Overall Length | 100 ft |
| Packaging | Spool |
| Conductor Insulation Color | Red, Yellow |
| Temperature Rating - Maximum Dry | 221 deg F |
| Number of Strands | 7 |
| Thermocouple Type | Type KX |
| Series | Not Applicable |
| Temperature Rating - Maximum Wet | Not Applicable |
| Package Quantity | 1 |
