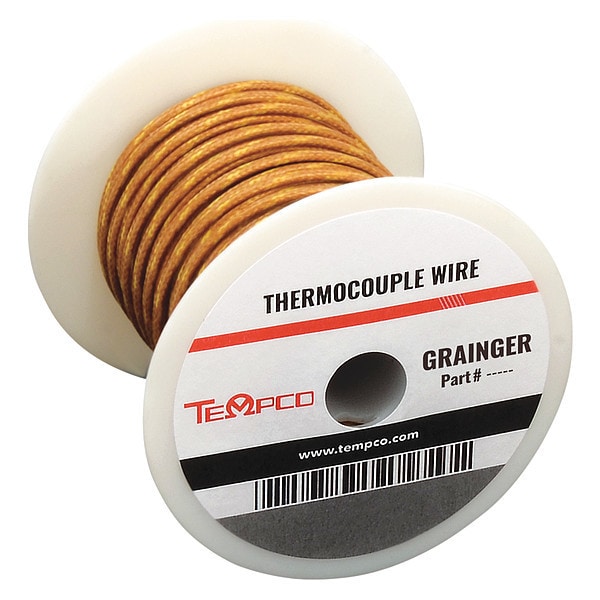

Este cable de plomo de termopar Tempco es perfecto para aplicaciones que requieren un cable confiable y de alta calidad. Con un calibre de 20AWG y una longitud de 100 pies, este cable ofrece una excelente conductividad y durabilidad para su termopar tipo K.
| Item | Thermocouple Wire |
|---|---|
| Wire Type | Type K |
| Wire Length | 100 ft |
| Conductor Design | Stranded |
| Insulation Material | Fiberglass |
| Jacket Color | Brown |
| Number of Conductors | 2 |
| Wire Size | 20 AWG |
| Wire Size - Wire and Cable | 20 AWG |
| Color Code | Yellow Positive/Red Negative |
| Length | 100 ft |
| Insulation Material - Wire and Cable | Fiberglass |
| Wire and Cable Item | Thermocouple Wire |
| Termination Type | None |
| Insulation | Fiberglass |
| Length - Wire and Cable | 100 ft |
| Ambient Temp. Limits | 900 Degrees F |
| Solid / Stranded | Stranded |
| Termination Type - Wire and Cable | None |
| Wire Type - Wire and Cable | K |
| Standards | ANSI MC96.1, ASTM E230 |
| Termination Type (Wire and Cable) | None |
| Length (Wire and Cable) | 100 ft |
| Wire Size (Wire and Cable) | 20 AWG |
| Trade Designation | K |
| Length (Straight Wireway) | 100 ft |
| Conductor Material | Alumel, Chromel |
| Thermocouple Type | Type K |
| Conductor Insulation Color | Red, Yellow |
| Ampacity at Maximum Temperature | Not Applicable |
| Overall Length | 100 ft |
| Number of Strands | 7 |
| Series | Not Applicable |
| Temperature Rating - Maximum Wet | Not Applicable |
| Trade Designation - Conductors | Not Applicable |
| Packaging | Spool |
| Conductor Size | 20 AWG |
| Conductor Insulation Material | Fiberglass |
| Temperature Rating - Maximum Dry | 900 deg F |
| Package Quantity | 1 |
