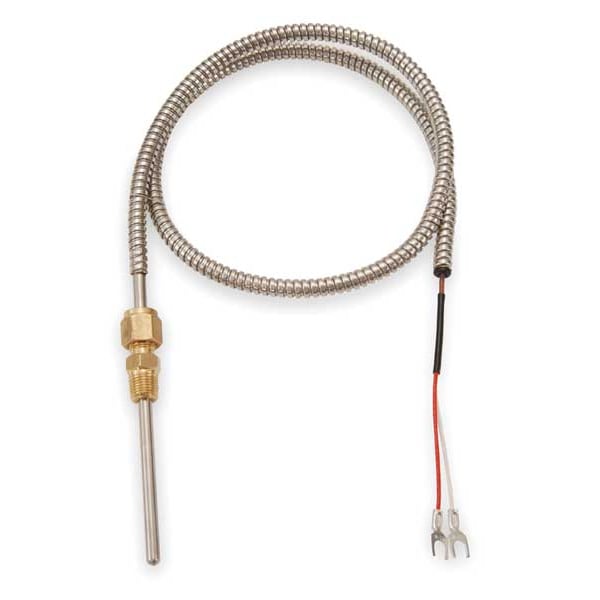

Termopar, Tipo J, Cable de 144 pulgadas.
| Item | Thermocouple Probe |
|---|---|
| Grounded / Ungrounded | Grounded |
| Plug or Connector Type | Fork Terminal |
| Thermocouple Type | J |
| Material | 304 Stainless Steel |
| Construction | 3/16 in dia With 1/8 in NPT Brass Compression Fitting to Mount |
| Max. Pressure (PSI) | 1,000 psi |
| Error Accuracy (Deg. C) | +/-2.2 Below 293 Degrees |
| Lead Length | 8 ft |
| Error Accuracy (%) | +/-0.75 |
| Probe Length | 4 in |
| Thermocouple Element | 20 AWG |
| Insulation | Fiberglass |
| Temp. Limit (Deg. F) | 900 |
| Sheath Size (In.) | 0.188 |
| Connector Type | Spade Lugs |
| Tip Style | Rounded |
| For Air | Yes |
| Process Mounting | 1/8"-27 NPT Compression |
| Head Connection | 1/8"-27 NPT |
| Cable Length | 8 ft |
| Probe Tip Diameter | 0.188 in |
| Probe Sheath Material | Stainless Steel |
| Probe Diameter | 0.188 in |
| Junction Type | Grounded |
| Cable Material | Fiberglass with Stainless Steel Armor Cable |
| For Gases | Yes |
| Minimum Temperature C | 0 Degrees C |
| For Surfaces | No |
| Fitting Type | Compression |
| Temperature Range | 32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C |
| Accuracy | +/-2.2 Degrees C or +/-0.75% |
| Sensor Type | Thermocouple |
| Minimum Temperature F | 32 Degrees F |
| Includes Thermowell | No |
| Probe Bend | Straight |
| For Application | Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical |
| Maximum Wire Gauge | 0.25 mm |
| Probe Size | 3/16 in x 4 in |
| For Solids | Yes |
| Head Material | Brass |
| For Liquids and Gels | Yes |
| Opening/Diameter | 1/8 in NPT |
| Maximum Temperature F | 1,400 deg F |
| Maximum Temperature C | 760 deg C |
| Minimum Temperature °F | 32 Degrees F |
| Maximum Temperature °C | 760 deg C |
| Minimum Temperature °C | 0 Degrees C |
| Maximum Temperature °F | 1,400 deg F |
| Minimum Temperature °C | 0 Degrees C |
| Maximum Temperature °F | 1,400 deg F |
| Minimum Temperature °F | 32 Degrees F |
| Maximum Temperature °C | 760 deg C |
| Package Quantity | 1 |
