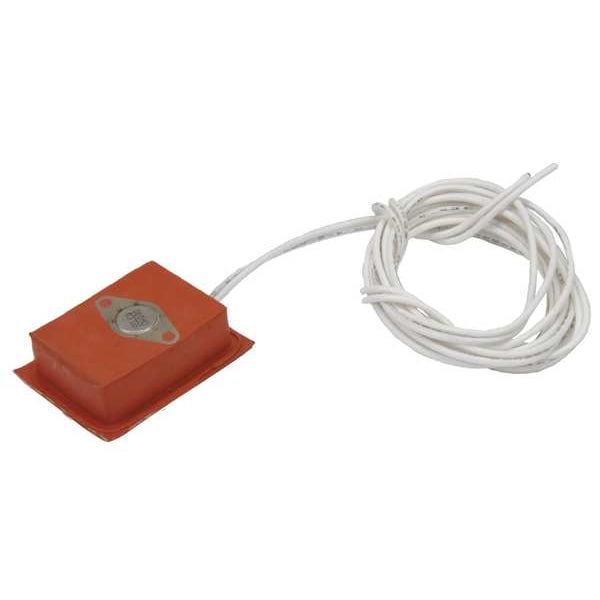

Thermostat, Snap, Open at 60 Degrees F, Close at 40 Degrees F, 120/250VAC
| Switch Action | Snap |
|---|---|
| Voltage | 120/250VAC |
| Differential | 15 Degrees F |
| Width | 2 in |
| Height | 0.56 in |
| For Use With | Enclosure Heaters |
| Control Range | Open at 60 Degrees F, Close at 40 Degrees F |
| Depth | 1-1/2 in |
| Item | Thermostat |
| Application | Measures Air Temperature of Enclosure |
| Full Load Amps @ 120VAC | 15 A |
| Full Load Amps @ 240VAC | 10 A |
| Mounting Style | Adhesive |
| Temperature Setpoint - Maximum | 60 deg F |
| Operation Mode | Heating Only |
| Overall Width | 2 in |
| Temperature Scale | Fahrenheit |
| Overall Height | 5/8 in |
| Housing Material | Rubber |
| Temperature Differential | 15 Degrees F |
| Temperature Adjustment | Fixed |
| Temperature Setpoint - Minimum | 40 deg F |
| Operating Voltage | 120 V AC; 250 V AC |
| Full Load Current @ 240V AC | 10 A |
| Full Load Current @ 120V AC | 15 A |
| Overall Depth | 1-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
