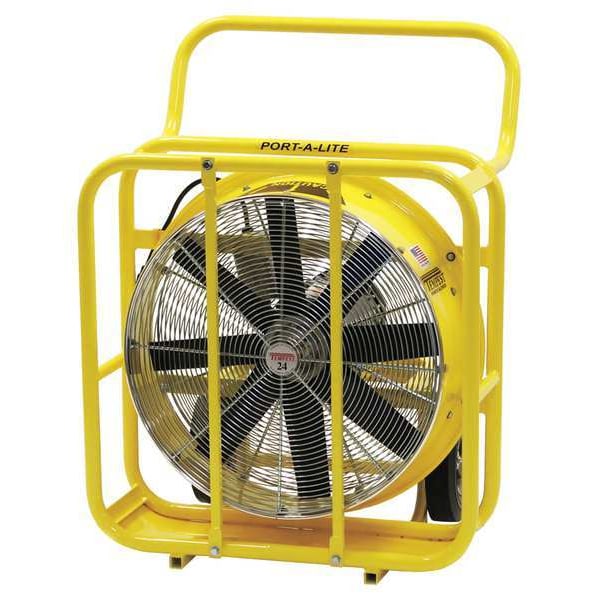

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/208-230V |
| Phase | 1 |
| Motor HP | 1 HP |
| Air Flow | 12,867 cfm |
| Drive Type | Direct Drive |
| Blade Material | Air Flex Fiberglass Reinforced Polymide |
| Sound Level | 100 dBA |
| Item | Air Circulator |
| CFM High | 12,867 |
| Mobile/Stationary | Mobile |
| Watts | 1610 W |
| Number of Blades | 8 |
| Guard Material | Spun Aluminum |
| Shaft Dia. | 5/8 in |
| Height | 40-3/4 in |
| Motor Type | Dual Voltage Capacitor Start |
| Assembled | Yes |
| Wire Guard Finish | Nickel Chrome |
| Application | Spot Cooling and Particulate/Fume Ventilation; Air Circulation |
| Housing Material | Welded Steel |
| Thermal Protection | Automatic |
| Fan Style | Standard Duty |
| Environmental Applications | Industrial |
| Width | 31 in |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Max. Depth | 23 in |
| Max. Ambient Temp. | 120 deg F |
| Hz | 60 |
| Fan Accessory Style | Standard |
| Bearing Type | Ball |
| Fan Mounting Location | Floor |
| Motor RPM | 1,725 RPM |
| Wheeled Base | Mobile |
| Depth | 23 in |
| Amps | 13.4/6.8-6.7 |
| RPM | 1725 |
| Fan Cord Length | 2 ft |
| Assembly Required | No |
| Fan Housing Material | Steel |
| Material | Welded Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
