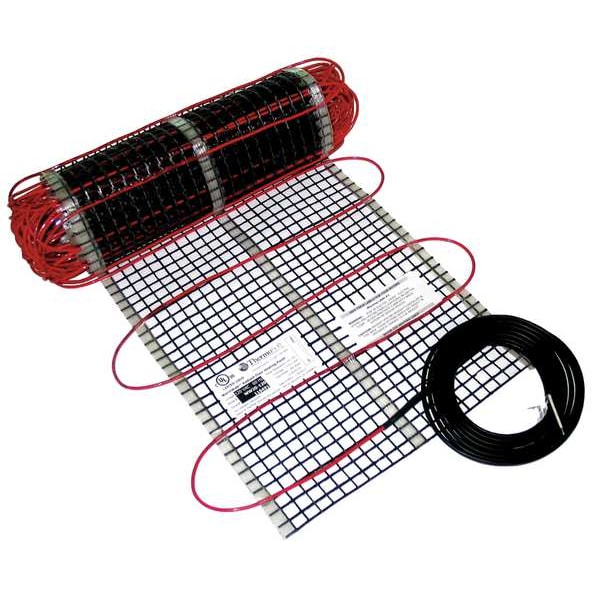

Electric Floor Heating Mat, 5 ft. L
| Item | Under Floor Electric Heating System |
|---|---|
| Heater Voltage | 120VAC |
| Heating Area | 7.5 sq ft |
| Watts Per Square Ft. | 12 |
| Length | 5 ft |
| Width | 18 in |
| Depth | 1/8" |
| Min. Bend Radius | 1 1/4 in |
| Heating Cable Spacing | 3 in |
| Ambient Temp. Range | 32 to 104 Degrees F |
| Includes | 10 in Lead Wire |
| Heating Cable Construction | Dual XLPE Insulated Conductors, AL/PET Shield, Ground Wire, Flame Retardant Polymer Insulation, Chemical and Abrasion Resistant Outer Insulation |
| Cold Lead | 2-Wire 16 AWG Plus Ground Braid |
| Manufacturers Warranty Length | 25 yr |
| Control Type | Thermostat(Not Included) |
| Standards | UL 1693 Listed, CSA 22.2 No. 130-2003 Listed |
| For Use With | ADG-4999, MTC-2991, UDG-4999, UDG4-4999, USG-4000, UWG4-4999 |
| Control Volts | 120V AC |
| Voltage | 120V AC |
| Heating Cable Ground Wire | Yes |
| Amperage | 0.8 A |
| Heating Capacity | 307 BtuH |
| Thermostat Included | No |
| Heating Cable Wire Gauge | 50-12 AWG |
| Heating Cable Insulation | Chemical and Abrasion Resistant Outer Insulation, Flame Retardant Polymer Insulation |
| Wattage Output | 90 W |
| Phase | 1 |
| Overall Width | 18 in |
| For Use Outdoors | Indoor Only |
| Heating Cable Shielding Material | Aluminum/Polyethylene Terephthalate |
| Heating Cable Conductor Type | Dual XLPE Insulated Conductors |
| Overall Length | 5 ft |
| For Use With Flooring Type | Carpet, Ceramic Tile, Marble, Porcelain, Stone, Vinyl Tile |
| Heating Cable Diameter | 1/8 in |
| Frequency | 60 Hz |
| Wattage Output per Square Foot | 12 W |
| Heating Method | Radiant |
| For Use Indoors/Outdoors | Indoor Only |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
