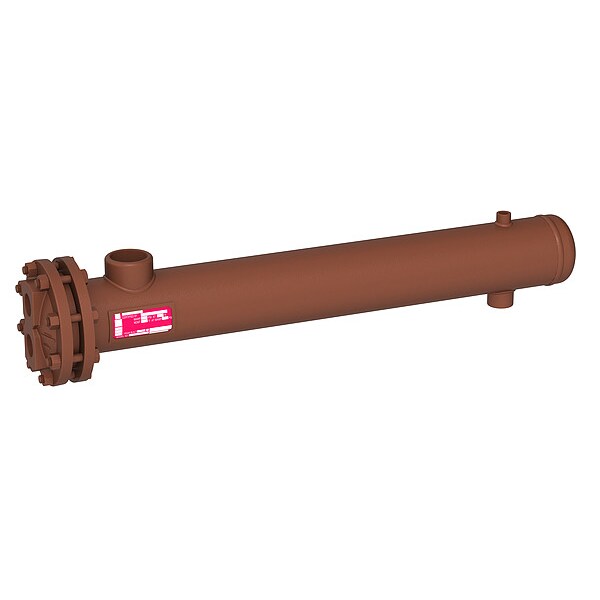

Steam-Water Heat Exchanger, 429,000 BtuH
| Item | Heat Exchanger |
|---|---|
| Type | Shell and Tube |
| Max. BtuH (Water to Water Application) | 429,000 BtuH |
| Pressure | Shell 150 PSI, Tube 150 PSI |
| Temp. (F) | Max 375 Degrees F |
| Construction Material | ¾ in 20ga Copper Tubes, Carbon Steel Baffle, Carbon Steel Shell, Carbon Steel Tubesheet, Cast Iron Head |
| Connection | Condensate 1.5 in NPT, Steam 3 in NPT, Tube 2 in NPT, Vent 3/4 in NPT |
| Capacity (GPM) | 115 gpm |
| Width (In.) | 11 |
| Agency Compliance | ASME Section VIII div. 1, National Board Registered |
| Height (In.) | 11 |
| Weight (Lbs.) | 165 |
| Length (In.) | 54 |
| Depth (In.) | 11 |
| Number of Passes | 2 |
| Tube Material | Copper |
| Shell Material | Carbon Steel |
| Shell Outside Diameter | 6 in |
| Total Surface Area | 17.3 sq ft |
| Shell Pipe Connection Type | NPT |
| Tube Length | 54 in |
| Heat Dissipation Capacity for Water | 429,000 BtuH |
| Overall Height | 11 in |
| Shell Maximum Operating Temperature | 375 deg F |
| Tube Pipe Connection Size | 2 in |
| Shell Maximum Pressure Rating | 150 psig |
| Tube Maximum Pressure Rating | 150 psig |
| Standards | ASME Section VIII Div. 1 |
| Shell Pipe Connection Size | 3 in |
| Overall Width | 11 in |
| Application | Air Conditioning, Heat Recovery, Liquid Heating and Cooling, Heating Systems |
| Tube Maximum Operating Temperature | 400 deg F |
| Tube Flow Capacity | 44 gpm |
| Heat Dissipation Capacity for Oil | Not Applicable |
| Shell Flow Capacity | 115 gpm |
| Heat Exchanger Type | U-Tube |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
