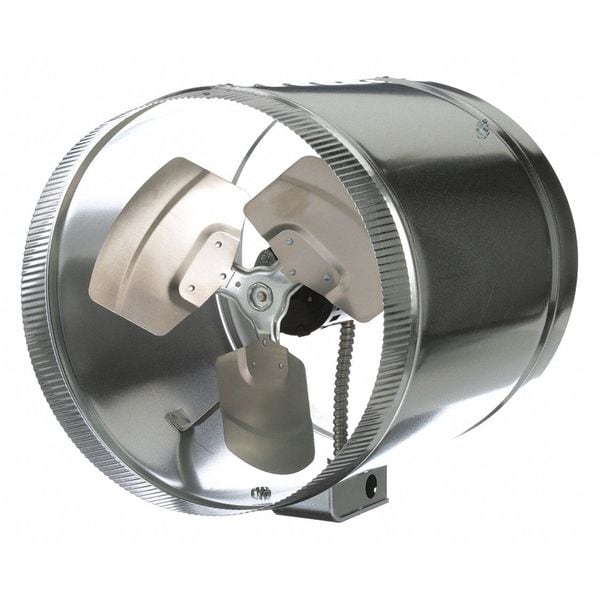

Axial Duct Booster, 14 In. Dia.
| Number of Speeds | 1 |
|---|---|
| Mounting Position | Horizontal or Vertical |
| Inlet and Outlet Dia. | 14 in |
| Max. Wattage | 122 |
| Includes | External Junction Box for Easy Wiring |
| Housing Material | Galvanized Steel |
| Voltage | 120V |
| Item | In-Line Duct Fan |
| Std. Lengths | 25/50/75 ft. |
| Max. Inlet Temp. | 150 Degrees F |
| CFM @ Duct | 1100/1000/900 cfm |
| CFM @ 0.000-In. SP | 1,200 |
| Max. Amps | 1.7 |
| Fits Duct Dia. | 14 in |
| Motor Enclosure | Open Air Over |
| Housing Dia. | 14 in |
| Bearing Type | Sleeve |
| Motor HP | 1/25 hp |
| Hz | 60 |
| Speed Control | No |
| Length | 14-1/2 in |
| Motor RPM | 1,500 |
| Phase | 1 |
| Application | General Purpose |
| Overall Height | 15-3/4 in |
| Overall Width | 14 in |
| Mounting Orientation | Vertical, Horizontal |
| Motor Speed | 1,500 rpm |
| Speed Control Included | No |
| Maximum Inlet Air Temperature | 150 Degrees F |
| Motor IP Rating | Not Applicable |
| For Fan Type | Tubeaxial |
| Overall Diameter | 14 in |
| Duct Diameter | 14 in |
| Airflow @ 0.000 in SP | 1,200 cfm |
| High-Efficiency Motor | No |
| Nameplate Voltage | 120V AC |
| Speed Controllable | Yes |
| Motor Output Power | 29.8 W |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
