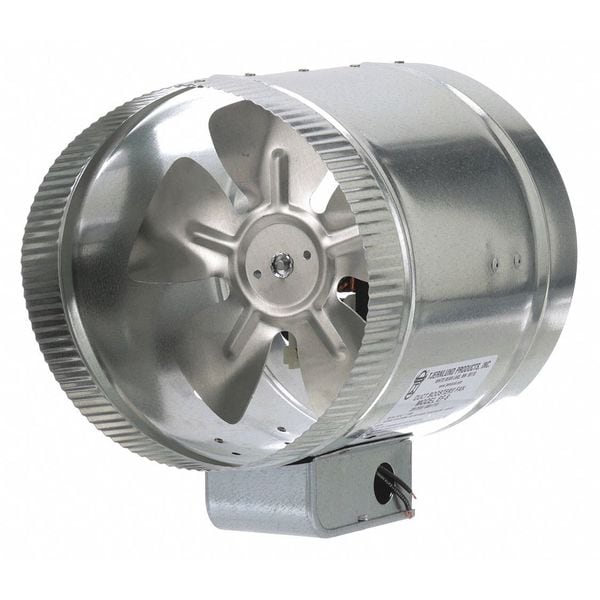

Axial Duct Booster, Galvanized Steel
| Motor Enclosure | Open Air Over |
|---|---|
| Housing Dia. | 8 in |
| Max. Wattage | 56 |
| Phase | 1 |
| Length | 9 in |
| Item | In-Line Duct Fan |
| Mounting Position | Horizontal or Vertical |
| Hz | 60 |
| Motor HP | 1/40 hp |
| CFM @ 0.000-In. SP | 325 |
| Speed Control | Mfr. No. 48C172 |
| Max. Inlet Temp. | 150 Degrees F |
| Includes | External Junction Box for Easy Wiring |
| Housing Material | Galvanized Steel |
| Max. Amps | 1.1 |
| Bearing Type | Sleeve |
| Fits Duct Dia. | 8 in |
| Std. Lengths | 25/50/75 ft. |
| Voltage | 120V |
| Motor RPM | 3,000 |
| CFM @ Duct | 300/250/200 cfm |
| Inlet and Outlet Dia. | 8 in |
| Number of Speeds | 1 |
| Application | General Purpose |
| Overall Height | 9 in |
| Overall Width | 8 in |
| Speed Control Included | No |
| Overall Diameter | 8 in |
| Nameplate Voltage | 120V AC |
| Motor Output Power | 18.6 W |
| For Fan Type | Tubeaxial |
| High-Efficiency Motor | No |
| Maximum Inlet Air Temperature | 150 Degrees F |
| Motor IP Rating | Not Applicable |
| Motor Speed | 3,000 rpm |
| Airflow @ 0.000 in SP | 325 cfm |
| Duct Diameter | 8 in |
| Mounting Orientation | Vertical, Horizontal |
| Speed Controllable | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
