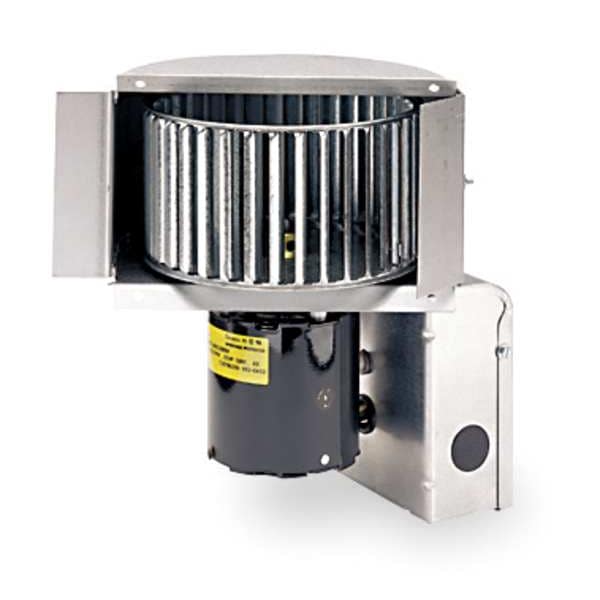

Inline Duct Booster, 7 In. L, Sleeve
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 5 to 8 in |
| Voltage | 120 V |
| Max. Amps | 0.51 |
| Max. Wattage | 40 |
| Number of Speeds | 1 |
| Length | 7 in |
| Motor RPM | 1,550 |
| Max. Inlet Temp. | 200 Degrees F |
| Phase | 1 |
| Height | 8 3/4 in |
| Standards | UL |
| Width | 9 1/2 in |
| Hz | 60 |
| Bearing Type | Sleeve |
| CFM @ 0.000-In. SP | 275 |
| Includes | Mounting Template |
| CFM @ 0.450-In. SP | 180 cfm |
| Motor Enclosure | Totally Enclosed |
| Inlet and Outlet Dia. | 5 to 8 in |
| Speed Control | Yes |
| CFM @ 0.500-In. SP | 100 cfm |
| Mounting Position | Horizontal |
| CFM @ 0.400-In. SP | 220 cfm |
| Application | General Purpose |
| Overall Height | 8-3/4 in |
| Overall Width | 9-1/2 in |
| Motor IP Rating | Not Applicable |
| Motor Speed | 1,550 rpm |
| Nameplate Voltage | 120V AC |
| Mounting Orientation | Horizontal |
| High-Efficiency Motor | No |
| Motor Output Power | 10.7 W |
| Airflow @ 0.000 in SP | 275 cfm |
| Speed Control Included | Yes |
| Speed Controllable | Yes |
| Maximum Inlet Air Temperature | 200 deg F |
| Duct Diameter | 8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
