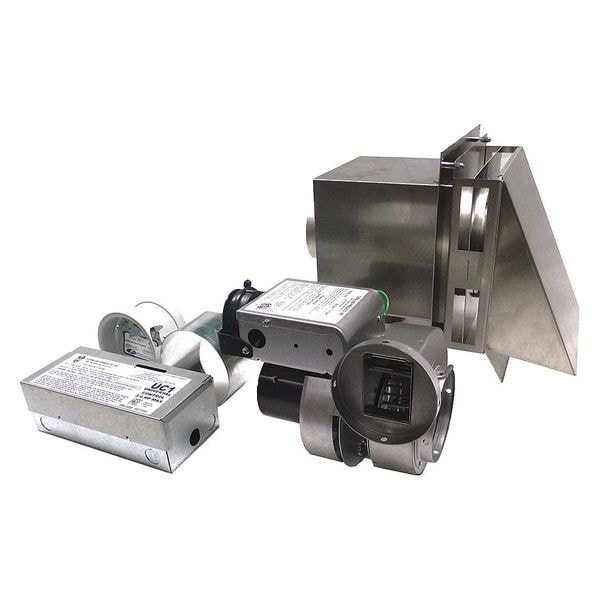

Power Venter, 120, Aluminized Steel, 10 1/4 in W, 8 in H, 4" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 4" |
|---|---|
| Item | Power Venter |
| Type | Side Wall |
| Voltage | 120 V |
| Depth (In.) | 7 |
| Cut Out Required | 8 in |
| Construction Material | Aluminized Steel |
| Amps | 1.26 |
| Includes | Draft Control, Vent Hood |
| Height (In.) | 8 |
| Vent Pipe Dia. (In.) | 4 |
| For Use With Mfr. Model Number | GPAK-JT |
| Fits Brand | Tjernlund |
| Replaces | Mfr. No. 950-1020 |
| Agency Compliance | ETL |
| Width (In.) | 10-1/4 |
| Application | Furnaces |
| Watts | 95 |
| RPM | 3,000 |
| Class | 1 |
| Max. Pipe Length 300 | 100 |
| CFM @ 1.000-In. SP | 10 |
| Max. Pipe Length 400 | 60 |
| CFM @ 0.000-In. SP | 110 |
| CFM @ 0.500-In. SP | 85 |
| CFM @ 0.700-In. SP | 67 |
| BtuH Input | 100,000 |
| Outlet Height | Not Applicable |
| Nameplate Voltage | 115V AC |
| For Appliance Type | Boilers, Commercial Water Heaters, Gas Furnaces, Pool Heaters, Unit Heaters |
| Current | 1.26 A |
| For Fuel Type | Natural Gas, LP |
| Outlet Width | Not Applicable |
| Maximum Heat Input | '250,000 BtuH |
| Overall Depth | 7 in |
| Power Consumption | 95 W |
| For Maximum Pipe Length | 100 ft |
| Housing Material | Steel |
| Standards | ETL Listed |
| Outlet Diameter | 4 in |
| Maximum Heater BTU Input for Gas Appliance | 120,000 BtuH |
| Cutout Size | 8 in |
| Overall Width | 10-1/4 in |
| Maximum Heater BTU Input for Oil Appliance | Not Applicable |
| Outlet Shape | Round |
| Inlet Diameter | 4 in |
| Maximum Vent Pipe Diameter | 4 in |
| Compatible with Brand | Tjernlund |
| For Use With | GPAK-JT |
| Overall Height | 7-7/8 in |
| Blower Type | Sidewall Power Venter |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
