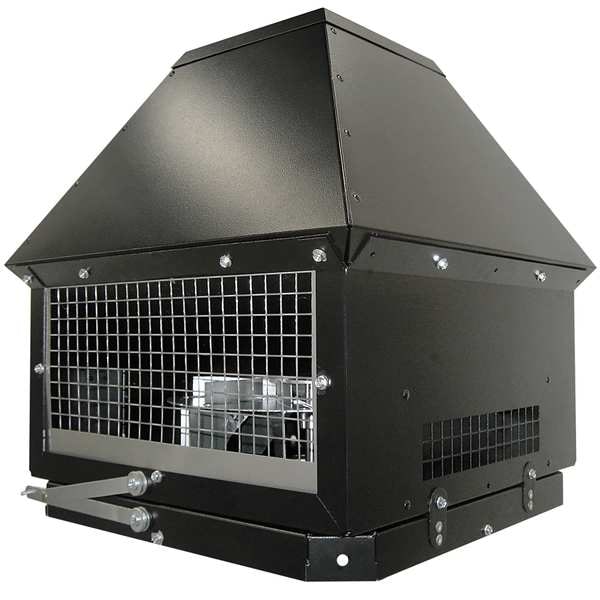

Rooftop Inducer, 120, Coated Galvanized Steel, 18 1/2 in W, 24 in H, 11-15/16" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 11-15/16" |
|---|---|
| Item | Rooftop Inducer |
| Type | Rooftop |
| Voltage | 120 V |
| Depth (In.) | 18-1/2 |
| HP | 1/2 hp |
| Construction Material | Coated Galvanized Steel |
| Amps | 5.8 |
| Includes | Fan Proving Switch |
| Remarks | View Catalog Page for Selection Criteria |
| Height (In.) | 24 |
| Vent Pipe Dia. (In.) | 12, 14 |
| Agency Compliance | CAN/CSA B255M81, UL378, UL705 |
| Width (In.) | 18-1/2 |
| Application | Furnaces, Oil Heating |
| Watts | 373 |
| RPM | 1,550 |
| Class | 1 |
| CFM @ 0.000-In. SP | 1,700 |
| Standards | cETL Listed |
| Maximum Heater BTU Input for Oil Appliance | 3,700,000 BtuH |
| For Fuel Type | Natural Gas, Oil |
| Outlet Width | Not Applicable |
| Outlet Shape | Round |
| Nameplate Voltage | 120V AC |
| Overall Width | 18-1/2 in |
| Wheel Material | Stainless Steel |
| Outlet Height | Not Applicable |
| Maximum Heater BTU Input for Gas Appliance | 2,700,000 BtuH |
| Housing Material Finish | Galvanized |
| Current | 5.8 A |
| Maximum Vent Pipe Diameter | 14 in |
| Overall Height | 22-1/2 in |
| Minimum Vent Pipe Diameter | 12 in |
| Outlet Diameter | 12 in |
| Housing Material | Steel |
| Overall Depth | 18-1/2 in |
| Inlet Diameter | 12 in |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
