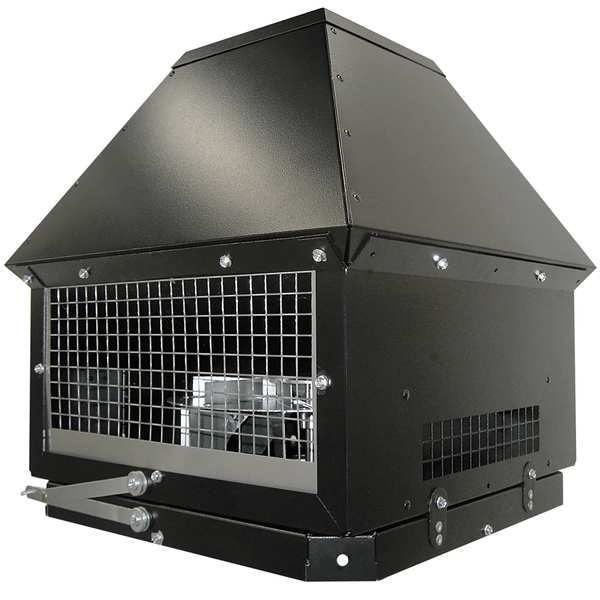

Rooftop Inducer, 120, Coated Galvanized Steel, 18 1/2 in W, 24 in H, 11-15/16" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 11-15/16" |
|---|---|
| Item | Rooftop Inducer |
| Type | Rooftop |
| Voltage | 120 V |
| Depth (In.) | 18-1/2 |
| HP | 1/2 hp |
| Construction Material | Coated Galvanized Steel |
| Amps | 5.8 |
| Includes | Manual Speed Control |
| Remarks | View Catalog Page for Selection Criteria |
| Height (In.) | 24 |
| Vent Pipe Dia. (In.) | 12, 14 |
| Agency Compliance | CAN/CSA B255M81, UL378, UL705 |
| Width (In.) | 18-1/2 |
| Application | Furnaces |
| Watts | 373 |
| RPM | 1,550 |
| Class | 1 |
| CFM @ 0.000-In. SP | 1,700 |
| Outlet Diameter | 12 in |
| Power Consumption | 0.3 kW |
| Overall Width | 18-1/2 in |
| Nameplate Voltage | 115V AC |
| Housing Material | Steel |
| For Appliance Type | Wood or Coal Stoves |
| Motor Type | Permanent Split Capacitor |
| Wheel Material | Stainless Steel |
| Outlet Shape | Round |
| Overall Depth | 18-1/2 in |
| Standards | cETL Listed |
| Inlet Diameter | 12 in |
| For Fuel Type | Solid Fuel Fireplace |
| For Vent Pipe Diameter | 8 in |
| Maximum Motor Speed | 1,600 rpm |
| Outlet Width | Not Applicable |
| Current | 5.8 A |
| Includes Motor | Yes |
| Outlet Height | Not Applicable |
| Overall Height | 22-1/2 in |
| Maximum Hearth Opening | 28 sq ft |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
