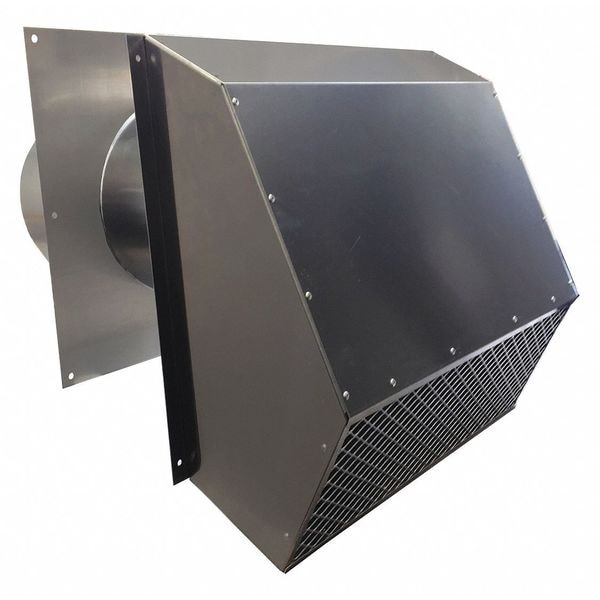

Vent Hood, High Temp, 10 In
| Item | Vent Hood |
|---|---|
| Cap Height (In.) | 18-3/8 |
| Cap Width (In.) | 20 |
| Material | Aluminum |
| Finish | Flat |
| Inlet Diameter | 10 in |
| Overall Length | 20 in |
| Fits Duct Size (In.) | 10 |
| Flange Size (In.) | 18-3/8 x 20 |
| Includes | Fasteners |
| Rough-In Dimensions | 10-1/4 in |
| Color | Silver |
| Connection Type | Press Fit |
| Features | Heavy Duty |
| Dimension A (In.) | 10 |
| Dimension E (In.) | 20 |
| Construction Material | 5052 Aluminum |
| Dimension B (In.) | 16 |
| Dimension D (In.) | 18-3/8 |
| Dimension C (In.) | 7-3/4 |
| Standards | Not Applicable |
| Duct Shape | Round |
| Backdraft Damper Included | No |
| Maximum Pressure Rating | Not Applicable |
| For Nominal Duct Diameter | 10 in |
| Material Thickness | 20 ga |
| Material Grade | 5052 |
| Series | VH1 |
| Weight | 14 lb |
| Base Thickness | 20 ga |
| Maximum Temperature Rating | 575 deg F |
| Shape | Round |
| Minimum Pressure Rating | Not Applicable |
| Screen Included | Yes |
| For Duct Width | Not Applicable |
| Overall Height | 18-3/8 in |
| Overall Width | 7-3/4 in |
| For Duct Height | Not Applicable |
| Gas Appliance Category | Category I |
| Venting Style | Not Applicable |
| End Type | Plain |
| Base Width | 20 in |
| Inside Diameter | 10 in |
| Rain Cap Style | Vented |
| Maximum Airflow | Not Applicable |
| Product Type | Vent Hood |
| Overall Depth | 7-3/4 in |
| Base Height | 18-3/8 in |
| Seal Material | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
