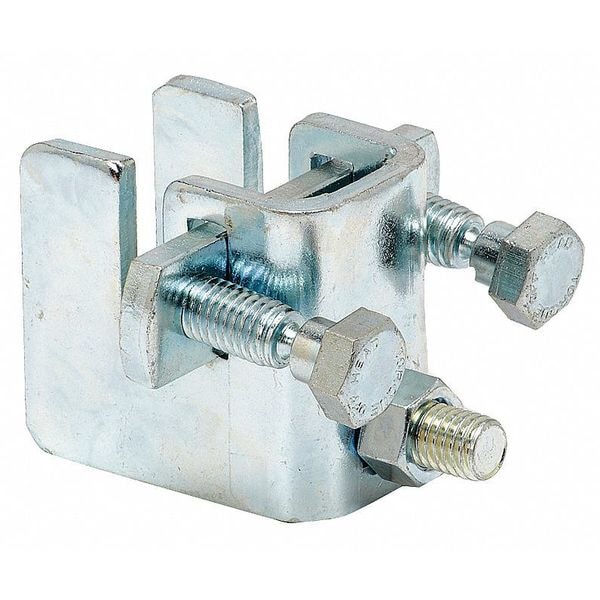

Bar Joist, Steel Beams Use, Steel, Galvanized
| Item | Bar Joist |
|---|---|
| Material | Steel |
| Finish | Galvanized |
| For Use With | Steel Beams |
| Standards | cUL Listed, cULus Listed, OPM, OSHPD, TOLCO, UL Listed |
| Length | 2-23/32 in |
| Width | 1-3/4 in |
| Flange Thickness | Up to 3/8 in |
| Height | 10-1/2 in |
| Type | Bar joist sway brace attachment to steel |
| Product Width | 3.53 in |
| Product Length/Depth | 3.719 in |
| Certifications | CUL, UL, listed |
| Product Height | 2-1/2 in |
| Load capacity | 1,600 lb |
| Sway Brace Type | Bar Joist |
| Flange Thickness - Maximum | 3/8 in |
| Overall Width | 1-3/4 in |
| Includes Mounting Hardware | Mounting Hardware Included |
| Weight Capacity | 1,600 lb |
| Package Quantity | 1 |
