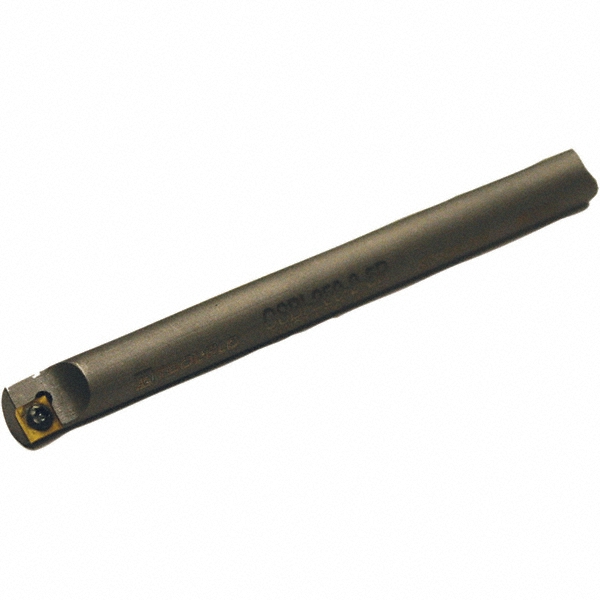

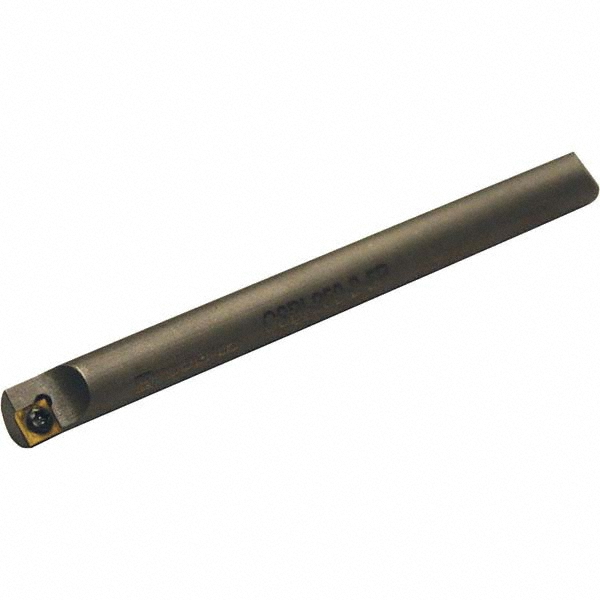

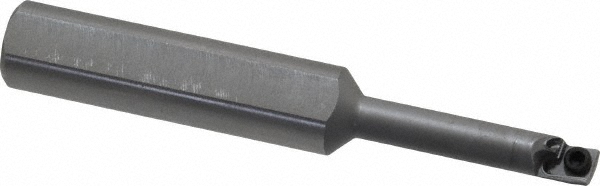

3.0000" OAL, Screw, Uses CDCD/G Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.2920 |
|---|---|
| Toolholder Style | CSBI |
| Tool Material | Steel |
| Insert Compatibility | CDCD/G |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 3.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Lead Angle | 0 |
| Series | Bantam |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1520 |
| Neck Diameter (Decimal Inch) | 0.2600 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 68388412 |
