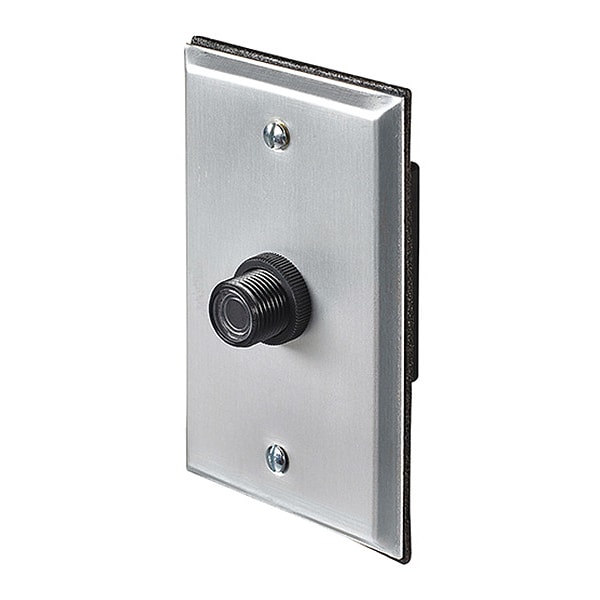

Botón de fotocontrol LED, de 120 a 277VCA.
| Item | LED Photocontrol Button |
|---|---|
| Mounting | Flush with Aluminum Plate |
| Voltage | 120 to 277V AC |
| Max. Wattage | 2,220 |
| Max. Incandescent Amps | 15 A |
| Max. Ballast Amps | 8 A |
| Foot Candles On | 1.5 |
| Foot Candles Off | 2.25 |
| Color | Black |
| Temp. Range | -40 to 158 deg F |
| Manufacturers Warranty Length | 10 yr |
| Depth | 4-3/4 in |
| Housing Material | Polycarbonate |
| Width | 3 in |
| Length | 2-1/4 in |
| Standards | ANSI C136.10-2010, UL773 |
| Length (Straight Wireway) | 2-1/4 in |
| Enclosure | Polycarbonate |
| Standard | cULus |
| Application | Roadway, Area, Parking, Flood and Security Type Lighting Fixtures |
| Sensor Type | Molded Sealed IR |
| Timing Range | Instant On |
| Frequency Rating | 50-60 Hz |
| Power Consumption | .5 Watts |
| Type | Flush Mount Lexan Housing Photocontrol |
| Sensitivity | Turn On Is 1.5fc |
| Supply Voltage | 105-305 VAC |
| Operating Temperature | -40 to + 140 F |
| Dimensions | .375 Flush Mount |
| Package Quantity | 1 |
