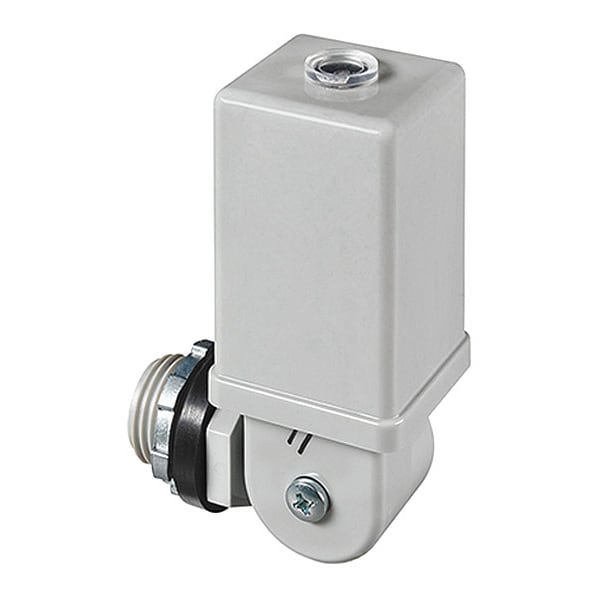

Fotocelda, 120-277VCA, Montaje pivotante
| Item | Photocontrol |
|---|---|
| Mounting | Swivel |
| Voltage | 120 to 277V AC |
| Max. Wattage | 2,220 |
| Max. Incandescent Amps | 15 A |
| Max. Ballast Amps | 8 A |
| Foot Candles On | 1.5 |
| Foot Candles Off | 2.25 |
| Color | Gray |
| Temp. Range | -40 to 158 deg F |
| Standards | ANSI C136.10-2010, UL773 |
| Housing Material | Polycarbonate |
| Width | 2-3/4 in |
| Length | 2 in |
| Manufacturers Warranty Length | 10 yr |
| Depth | 4-1/4 in |
| Length (Straight Wireway) | 2 in |
| Sensor Type | Molded Sealed IR |
| Standard | cULus |
| Enclosure | Lexan Housing |
| Application | Roadway, Area, Parking, Flood and Security Type Lighting Fixtures |
| Sensitivity | Turn On Is 1.5fc |
| Operating Temperature | -40 to + 140 F |
| Supply Voltage | 105-305 VAC |
| Type | Lexan Swivel Photocontrol |
| Frequency Rating | 50-60 Hz |
| Power Consumption | .5 Watts |
| Dimensions | .500 Conduit Mount |
| Timing Range | Instant On |
| Ul Standard | UL773 |
| Voltage Rating | 105-305VAC |
| Material | Lexan |
| Certifications | cULus, ANSI, CSA |
| Package Quantity | 1 |
