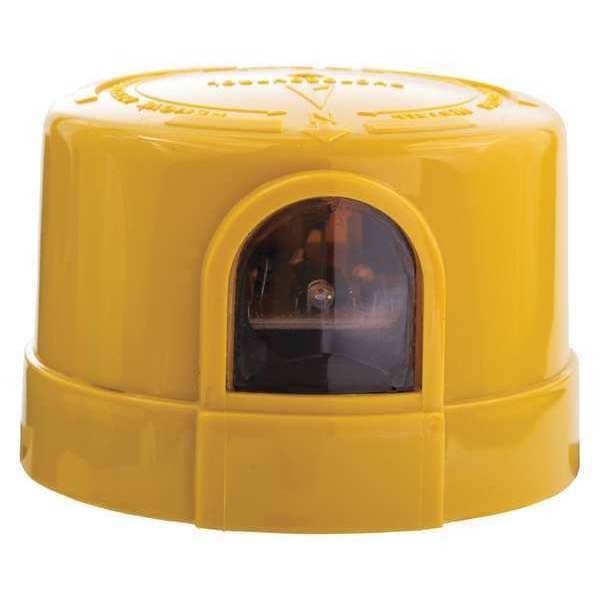

Fotocelda, 400-550VAC, Amarillo, 3-3/16" L
| Item | Photocontrol |
|---|---|
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Mounting | Turn-Lock |
| Voltage | 400 to 550V AC |
| Max. Wattage | 1,000 |
| Max. Incandescent Amps | 2 A |
| Max. Ballast Amps | 4 A |
| Foot Candles On | 1.5 |
| Foot Candles Off | 2.25 |
| Color | Yellow |
| Temp. Range | -40 to 158 deg F |
| Description/Special Features | Instant On/Off Switching |
| Width | 3-3/16 in |
| Length | 3-3/16 in |
| Includes | Gasket |
| Standards | California Title 24 Compliant, UL773 |
| Housing Material | Polycarbonate |
| Setting | Dusk to Dawn |
| Enclosure Type | Polycarbonate |
| Depth | 2-3/16 in |
| Manufacturers Warranty Length | 6 yr |
| Length (Straight Wireway) | 3-3/16 in |
| Operating Temperature | -40 to + 158 F |
| Supply Voltage | 400-550 VAC |
| Sensitivity | Turn On Is 1.5 Foot Candle - Turn Off to Turn On is 1.5:1 Average |
| Application | Street-Highway Lighting |
| Timing Range | Instant On |
| Sensor Type | Molded Sealed IR |
| Frequency Rating | 50-60 Hz |
| Enclosure | Polycarbonate |
| Type | Instant Response Turn Lock Photocontrol |
| Dimensions | H=2.187 - W=3.187 |
| Package Quantity | 1 |
