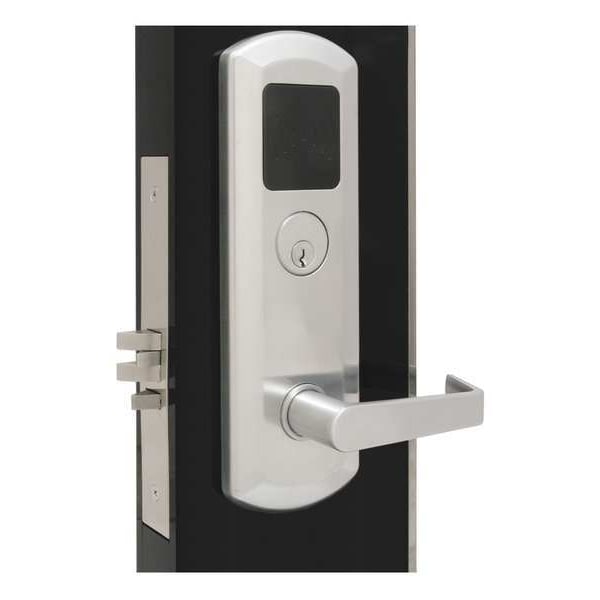

Classroom Lock, Stin Chrome, Quest Lever
| Item | Electronic Keyless Lock |
|---|---|
| Finish | Satin Chrome |
| Type | Mortise Rigid |
| For Use With | Commercial Door |
| Material | Brass, Stainless Steel, Zinc, Wrought Steel |
| Operating Temp. Range | -31 to 151 deg F |
| Series | 2000 |
| Inside Depth | 2 3/4 in |
| Fire Rating | 3 hr |
| Function | Programable Function Control |
| Hand | Field Reversible |
| Outside Width | 3-27/64 in |
| Inside Width | 3-5/16 in |
| Battery Life | 1 to 2 yr |
| Latch Front Size | 1-1/4 in x 8 in |
| Key Override Options | Schlage "C" 6 Pin Keyway |
| Power Source | AA Batteries |
| Lock Material | Stainless Steel |
| Outside Height | 10-15/32 in |
| Outside Depth | 2 11/16 in |
| Event Audit Trail | No |
| Weather Resistant | Yes |
| Grade | 1 |
| Door Thickness | 1-3/4 in |
| Timed Entry Allowance | 8 sec |
| Electrical/Mechanical | Electrical |
| Handle Type | Rigid Lever Quest |
| Keypad Material | Not Applicable |
| Access Method | RFID |
| Mounting Style | Mortise |
| Inside Height | 10-1/2 in |
| Max. Proximity Range | 3/4 in |
| Latch Length | 3/4 in |
| IP Rating | Not Rated |
| ADA Compliant | Yes |
| Standards | ANSI/BHMA A156.25, BAA, EU RoHS Directive 2002/95/EC, FCC Part 15, UL/cUL listed |
| Backset | 2 3/4 in |
| Max. User Codes | 250 |
| Voltage | 1.5 |
| Case Material | Stainless Steel |
| Keypad | RFID |
| Bolt Throw | 3/4 in |
| Overall Height | 10-1/2 in |
| Overall Width | 3-7/16 in |
| Overall Depth | 2-11/16 in |
| Product Type | Electronic Keyless Lock |
| Temperature - Maximum | 151 deg F |
| Strike Base Height | 4 7/8 in |
| Operation Type | Push Button |
| Lockset Material | Stainless Steel |
| Lockset Handle Type | Lever |
| Latch Front Width | 1-1/4 in |
| Lockset Type | Electrical |
| Strike Type | ASA |
| UL Fire Rating | UL10C |
| Latch Front Length | 8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| ANSI Grade | 1 |
| User Codes - Maximum | 250 |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Function | Office |
| Proximity Distance - Maximum | 1/2 in |
| Lever Style | Rigid |
| Event Audit Trails | Not Applicable |
| Strike Base Width | 1-1/4 in |
| Temperature - Minimum | -31 deg F |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
