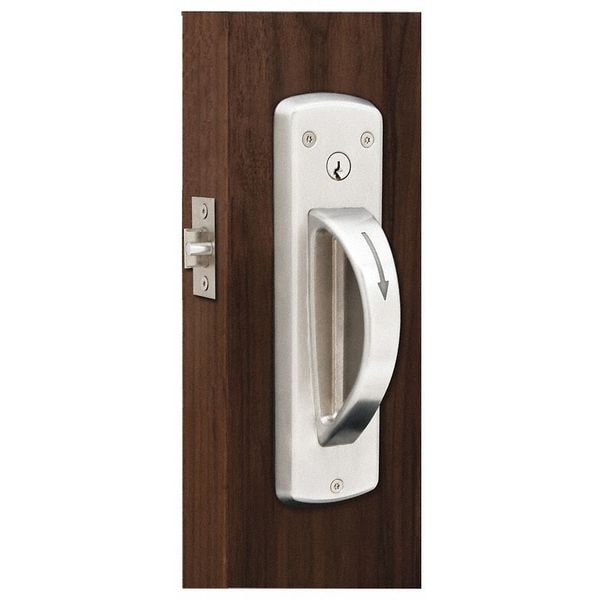

Lever Lockset, Arch Handle, Cylindrical
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Arch Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | Curved |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Stainless Steel |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Lockset Fire Rating | 3 hr |
| Number of Keys | 2 |
| Backset | 2-3/4 in |
| Item | Door Lockset |
| Strike Type | ASA |
| For Use With | Commercial Doors |
| Number of Pins | 6 |
| Cylinder Core Type | Conventional Core Cylinder |
| Key Material | Steel |
| Lockset Performance Strength | Light Duty |
| ADA Compliant | Yes |
| Voltage | Not Applicable |
| Handle Material | Stainless steel |
| Mortise/Cylindrical | Cylindrical |
| Includes | Mounting Screws |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Ligature Resistant | Yes |
| Features | Through-Bolt Mounting with Tamper-Resistant Screws |
| Series | CRX-A |
| Standards | Act Compliant, ANSI/BHMA A156.13, ANSI/BHMA Grade 1, BAA, UL Listed |
| Location Type | Behavioral Health, Detention Facility |
| Fire Rated | Standards ANSI/BHMA A156.2-2011 UL 10C |
| Visual Indicator Message | No Message |
| Hand | Right |
| Lockset Type | Mechanical |
| UL Fire Rating | UL10C |
| Locking/Unlocking Access - Inside | Not Lockable |
| Performance Grade | 1 |
| Knob/Handle Material | Stainless Steel |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Application | Commercial |
| Strike Plate Height | 4-7/8 in |
| Ligature-Resistant | Ligature-Resistant |
| Includes Hardware | Hardware Included |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Function ANSI Code | F86 |
| Hand Orientation | Right-Handed |
| ANSI Grade | 1 |
| Visual Indicator Location | Not Applicable |
| Strike Plate Width | 1-1/4 in |
| Lockset Style | Cylindrical |
| Fire Rating | 3 hr |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
