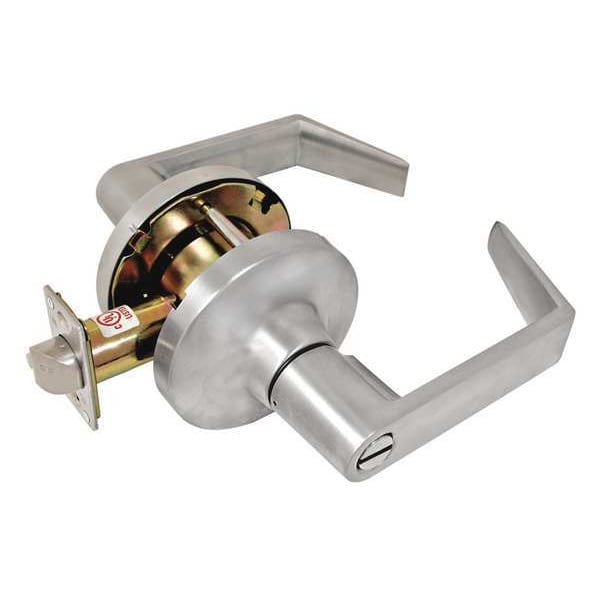

Lever Lockset, Mechanical, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 1 |
| Style | CDC/CD Cylindrical |
| Required Door Thickness | 1-3/8 in to 2 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Strike Type | ASA |
| ADA Compliant | Yes |
| Cylinder Core Type | Conventional Core Cylinder |
| Includes | Mounting Hardware |
| For Use With | Commercial Doors |
| Features | Removable Thru-Bolt and Adjustable Mounting Plate |
| Backset | 2-3/4 in |
| Lockset Fire Rating | 3 hr |
| Item | Door Lockset |
| Location Type | Commercial, Healthcare, Industrial, Multi-Family |
| Series | CDC/CD |
| Standards | Act Compliant, ANSI/BHMA A156.13 |
| Strike Dim. | 1-1/4 in x 4-7/8 in x 1-5/16 in |
| Mortise/Cylindrical | Cylindrical |
| Handle Material | Zinc |
| Number of Keys | 2 |
| Ligature Resistant | No |
| Number of Pins | 6 |
| Key Material | Brass |
| Lockset Performance Strength | Heavy Duty |
| Finish | Satin Chrome |
| Grade | 1 |
| Keying | Keyed Different |
| Fire Rated | 3 hr. |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Hand Orientation | Non-Handed |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Strike Plate Width | 1-5/16 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Door Thickness - Minimum | 1-3/8 in |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Zinc |
| Performance Grade | 1 |
| Application | Commercial, Institutional, Industrial, Multiple Family Residential |
| Strike Plate Thickness | 1 1/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Height | 4-7/8 in |
| ANSI Grade | 1 |
| Door Thickness - Maximum | 2 in |
| Lockset Function ANSI Code | F109 |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Style | CD/CDC Cylindrical Lock |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Type | Mechanical |
| UL Fire Rating | UL10C |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
