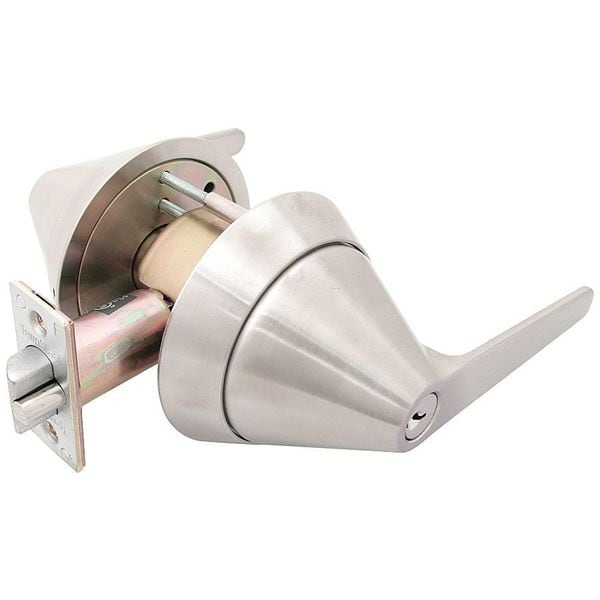

Lever Lockset, Mechanical, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | TRXL |
| Required Door Thickness | 1-3/4 in to 2 in |
| Lockset Finish | Satin Stainless Steel |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Key Material | Brass |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Number of Pins | 6 |
| Features | For Use On Wood and Metal Doors, Tamper Resistant Mounting Screws |
| Item | Door Lockset |
| Includes | Mounting Screws |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Standards | Act Compliant, ANSI/BHMA A156.13, ANSI/BHMA Grade 1, BAA, UL Listed |
| Lockset Fire Rating | 3 hr |
| Series | TRXL |
| Lockset Performance Strength | Heavy Duty |
| Backset | 2-3/4 in |
| ADA Compliant | Yes |
| Number of Keys | 2 |
| Strike Type | ASA |
| Mortise/Cylindrical | Cylindrical |
| Ligature Resistant | Yes |
| Voltage | Not Applicable |
| For Use With | Wood, Steel and Fiberglass Doors |
| Handle Material | Stainless steel |
| Grade | 1 |
| Finish | Satin Stainless |
| Keying | Keyed Different |
| Fire Rated | 3 hr. |
| Type | Cylindrical |
| Visual Indicator Message | No Message |
| Material | Brass Steel Zinc |
| Function | Storeroom |
| Pins | 6 |
| For Door Thickness | 1-3/4" |
| Strike | ASA |
| Cylinder | Standard or IC Core |
| Strike Plate Height | 4-7/8 in |
| Ligature-Resistant | Ligature-Resistant |
| Door Thickness - Minimum | 1-3/4 in |
| Locking/Unlocking Access - Inside | Not Lockable |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Performance Grade | 1 |
| Lockset Style | TRXL Cylindrical Lock |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| ANSI Grade | 1 |
| Application | Commercial |
| Knob/Handle Material | Stainless Steel |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Hand Orientation | Non-Handed |
| Strike Plate Width | 1-1/4 in |
| Lockset Type | Mechanical |
| UL Fire Rating | UL10C |
| Door Thickness - Maximum | 2 in |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Function ANSI Code | F86 |
| Visual Indicator Location | Not Applicable |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
