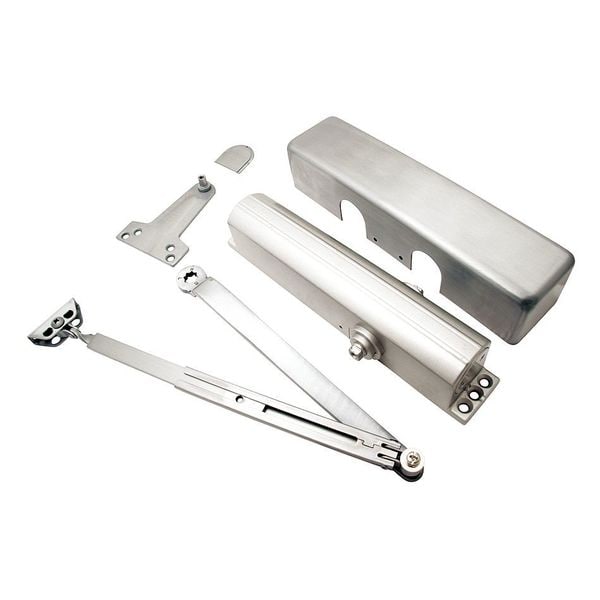

Manual, Hydraulic, TownSteel Overhead Closers, Door Closer, Heavy Duty Interior and Exterior
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Surface |
| Closer Performance | Heavy Duty |
| Closer Series | TownSteel Overhead Closers |
| Closer Type | Parallel Arm Dead Stop |
| Color | Dark Bronze |
| Finish | Dark Bronze |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-3/16 in |
| Housing Height | 3-5/8 in |
| Housing Length | 12-5/8 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Spring Size | Adjustable 1 to 6 |
| Interior Door Width | 48 in |
| Exterior Door Width | 42 in |
| Max. Door Opening | 90 Degrees to 180 Degrees |
| Ligature Resistant | No |
| Includes | Template |
| Arm Material | Forged Steel |
| Standards | A156.4; Grade 1; UL; ULC Listed; BAA Buy American Act; ADA |
| ADA Compliant | Yes |
| Mounting Hardware | Included |
| Projection from Wall | 5 in |
| Arm Type | Parallel |
| Category Type | Parallel Arm |
| Features | All Weather Fluid, Heavy Duty Cast Aluminum Alloy Body and Forged Steel Arm, Adjustable Latch |
| Door Handing | Non-Handed |
| Series | TDC 85 |
| For Use With | Commercial Doors |
| Mounting Style | Parallel Arm |
| Spring Type | Adjustable |
| Door Opening - Maximum | 180 deg |
| Interior Door Width - Maximum | 48 in |
| UL Fire Rating | UL10C |
| Door Opening - Minimum | 100 deg |
| Projection | 2-1/8 in, 2-3/16 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Height Between Mounting Holes | 3/4 in |
| Exterior Door Width - Maximum | 42 in |
| Spring Size - Maximum | 6 |
| Performance Grade | 1 |
| Includes Hardware | Hardware Included |
| Product Type | Door Closer |
| Spring Size - Minimum | 1 |
| ANSI/BHMA Finish | Painted |
| Operation Style | Manual |
| Length Between Mounting Holes | 12 in |
| Interior/Exterior Use | Interior, Exterior |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
