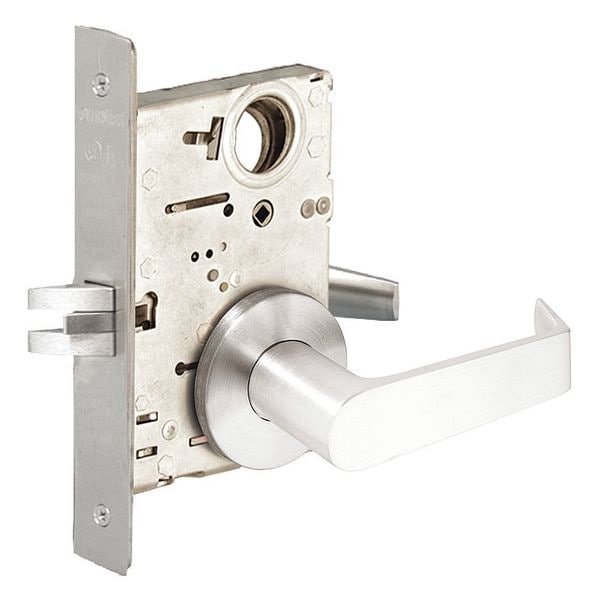

Mortise Lockset, Lever, MS Sentinel, Ser. MS, Grd. 1, Entrance
| Item | Door Lockset |
|---|---|
| Handle Type | Lever |
| Keyway Type | Schlage C |
| Number of Pins | 6 |
| Finish | Satin Chrome |
| Strike Type | ANSI |
| Fire Rated | 3 hr |
| Grade | 1 |
| Number of Keys | 2 |
| Style | MS Sentinel |
| Keying | Keyed Different |
| Function | Office, Entry |
| Series | MS |
| Key Material | Brass |
| For Use With | Commercial Doors |
| Mortise / Cylindrical | Mortise |
| Standards | ANSI/BHMA A156.13, ANSI/BHMA Grade 1, UL Listed |
| Mortise/Cylindrical | Mortise |
| Electrical/Mechanical | Mechanical |
| Location Type | Commercial, Healthcare, Industrial, Residential |
| Lockset Finish | Satin Chrome |
| Backset | 2-3/4 in |
| Lockset Fire Rating | 3 hr |
| ADA Compliant | Yes |
| Required Door Thickness | 1-3/4 in |
| Features | Guard Bolt Stainless Steel, Latch Bolt 3/4 in Projection, Stainless Steel, Split, Anti-Friction, Stop Works Stainless Steel, Rocker Type |
| Includes | Hardware |
| Key Type | Keyed Different |
| Ligature Resistant | No |
| Lockset Function | Entrance |
| Lockset Grade | 1 |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Lockset Handle Type | Lever |
| Case Material | Steel |
| Voltage | Not Applicable |
| Pins | 6 |
| Visual Indicator Message | No Message |
| Performance Grade | 1 |
| Locking/Unlocking Access - Outside | Keyway |
| Lockset Style | MS Sentinel |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Includes Hardware | Hardware Included |
| Lockset Function ANSI Code | F04 |
| Application | Commercial, Institutional, Industrial, Residential |
| Ligature-Resistant | Not Ligature-Resistant |
| UL Fire Rating | UL10C |
| Strike Plate Height | 4 7/8 in |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 1-3/4 in |
| Fire Rating | 3 hr |
| Strike Plate Width | 1-1/4 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| ANSI Grade | 1 |
| Visual Indicator Location | Not Applicable |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
