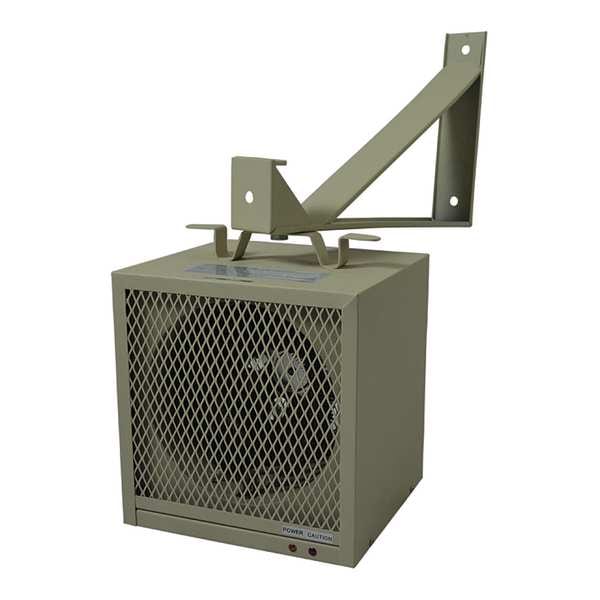

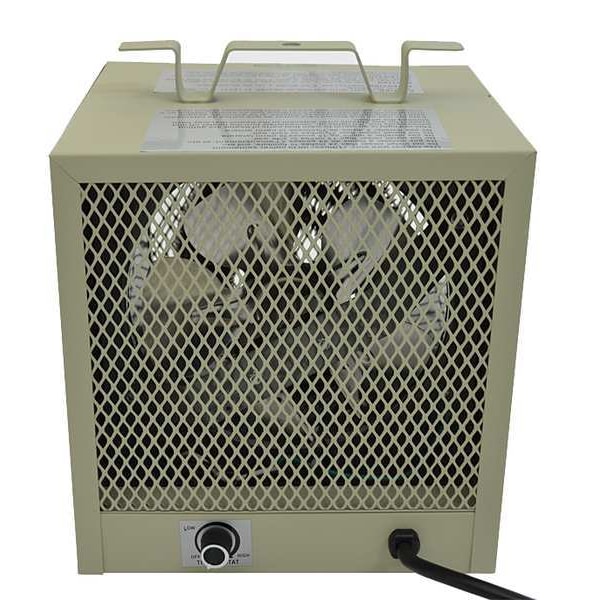

4kW Electric Utility Heater, 1-Phase, 240/208V
| Item | Electric Wall & Ceiling Unit Heater |
|---|---|
| Electric Heater Item | Electric Utility Heater |
| kW | 4.0 |
| BtuH | 13,652 |
| Heater Voltage | 208/240VAC |
| Phase | 1 |
| Amps AC | 14.4/16.6 |
| Electric Heater Phase | 1 |
| Includes | 6 ft Power Cord with 30 A Plug, Ceiling Bracket, Wall |
| Air Flow | 238 cfm |
| Housing Material | Steel |
| Heater Housing Finish | Painted |
| Hz | 60 |
| Features | Operates On 240 or 208V, 1-Phase, Can Operate As Portable Heater for Bench or Floor Operation, or Mount to The Wall or Ceiling with The Supplied Steel Bracket, Steel Housing with Beige Powder-Coated Finish, Includes Handle with Electric Cord Reel, Fan-Forced Steel Tubular Heating Element Design Generating As Much As 15,086 Btu, Includes 6 ft. Cord with Grounded Plug, Built-In Thermostat, with Automatic Thermal Limit Cut-Out Safety Device, Power-On Indicator and Overheat Pilot Lights, NEMA Plug Configuration (#6-20P) |
| Manufacturers Warranty Length | 1 yr |
| Temp. Rise | 45 deg F |
| Standards | ETL Listed for US & Canada |
| Width | 10-5/8 in |
| Depth | 9-5/8 in |
| Height | 11 in |
| Wattage Output | 3 kW, 4 kW |
| Requires | Proper Electrical Service |
| Housing Color | Beige |
| Control Type | Thermostat |
| Housing Finish | Painted |
| Overall Depth | 9-5/8 in |
| Frequency | 60 Hz |
| Amperage | 14.4A/16.6A |
| Vertical Floor Coverage | 12 ft |
| Overall Height | 11 in |
| Contactor Coil Voltage | 208/240V AC |
| Voltage | 208/240V AC |
| Heating Capacity | 13,652 BtuH |
| Overall Dimensions - H x W x D | 11 in x 10-5/8 in x 9-5/8 in |
| Overall Width | 10-5/8 in |
| Voltage, Phase | 208/240V AC, 1-phase |
| Horizontal Air Throw | 10 ft |
| Air Temp. Rise | 53 deg F |
| Vertical Mounting H | 7 to 12 ft |
| Heating Method | Fan Forced |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
