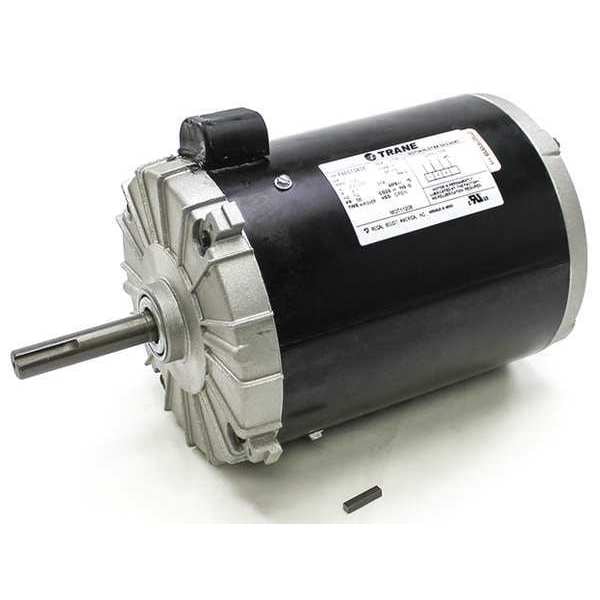

Motor, 1 HP, 200-230V, 1140 rpm
| Voltage | 200-230V AC |
|---|---|
| Item | Motor, 1 HP, 200-230V, 1140 rpm |
| RPM Range | 1,101-1,200 |
| Frame | 56 |
| Ins. Class | B, F1 |
| Motor Shaft Rotation | CCW |
| Overall Length | 12-7/8 in |
| HP | 1 hp |
| Shaft Dia. | 5/8 in |
| Motor Design | 3-Phase |
| Motor Bearings | Ball |
| Voltage Compatibility | 200V AC, 230V AC |
| Motor Service Factor | 1.25 |
| Nameplate RPM | 1140 |
| Full Load Amps | 4.1 |
| Motor Enclosure Design | Open Drip Proof |
| Phase | Three |
| Max. Ambient Temp. | 149 deg F |
| Usable @ 200V | Usable at 200V |
| Motor Mounting Position | Vertical |
| Weight | 28 lb |
| Conduit Box Position | F1 |
| Nominal Efficiency | 75% |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
