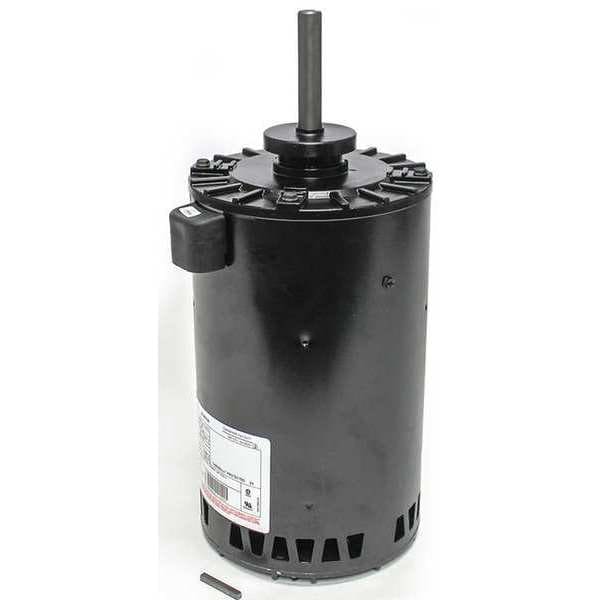

Motor, 1 HP, 200-230V, 3 Phase, 850 rpm
| Voltage | 200-230V AC |
|---|---|
| Item | Motor, 1 HP, 200-230V, 3 Phase, 850 rpm |
| Motor Service Factor | 1 |
| Phase | Three |
| HP | 1 hp |
| Motor Enclosure Design | Open Drip Proof |
| RPM Range | 0-1,000 |
| Overall Length | 14-7/8 in |
| Shaft Length | 3-3/8 in |
| Full Load Amps | 4.8 |
| Motor Shaft Rotation | CW |
| Voltage Compatibility | 200V AC, 230V AC |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Mounting Type | Screw |
| Ins. Class | B |
| Shaft Dia. | 5/8 in |
| Nameplate RPM | 850 |
| Usable @ 200V | Usable at 200V |
| Motor Mounting Position | Vertical |
| Max. Ambient Temp. | 104 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
