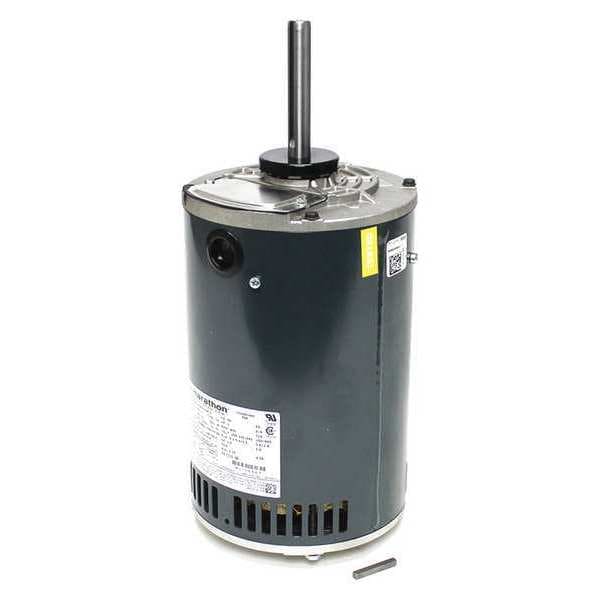

Motor, 1 HP, 200/460V, 850 rpm, 2 Speed
| Voltage | 200-460/400V AC |
|---|---|
| Item | Motor, 1 HP, 200/460V, 850 rpm, 2 Speed |
| Full Load Amps | 4.9 |
| Frame | 56 |
| RPM Range | 0-1,000 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Overall Length | 16-1/4 in |
| No. of Speeds | 1 |
| Motor Bearings | Ball |
| Motor Mounting Type | Belly Band |
| Nameplate RPM | 850 |
| Shaft Dia. | 5/8 in |
| Motor Service Factor | 1 |
| Ins. Class | B |
| HP | 1 hp |
| Phase | Three |
| Motor Shaft Rotation | CW, CCW |
| Voltage Compatibility | 200V AC, 400V AC, 460V AC |
| Motor Design | 3-Phase |
| Shaft Length | 5 in |
| Full Load Amps @ 50Hz | 4.9 A |
| Service Factor @ 50Hz | 1 |
| Weight | 61 lb |
| Voltage @ 50Hz | 200-460 |
| HP @ 50Hz | 1 hp |
| Max. Ambient Temp. | 104 deg F |
| Usable @ 200V | Usable at 200V |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
