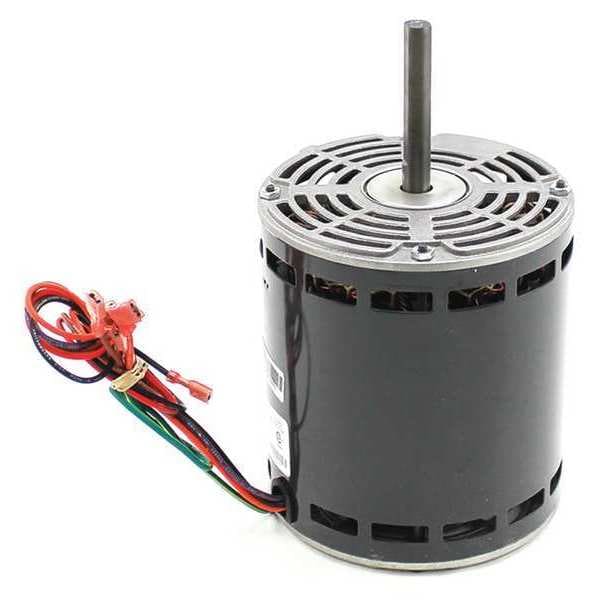

Motor, 1 HP, 460/380-415V, 2 Speed, CW
| Voltage | 460V AC |
|---|---|
| Item | Motor, 1 HP, 460/380-415V, 2 Speed, CW |
| Overall Length | 9-5/16 in |
| Shaft Dia. | 1/2 in |
| Motor Enclosure Design | Open Drip Proof |
| Frame | 48 |
| Voltage Compatibility | 460V AC |
| Full Load Amps | 3.2 |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CWLE |
| RPM Range | 1,001-1,100 |
| Motor Mounting Type | Belly Band |
| Nameplate RPM | 1075 |
| Ins. Class | B |
| HP | 1 hp |
| Motor Bearings | Ball |
| Phase | Single |
| No. of Speeds | 2 |
| Motor Design | 1-Phase |
| Shaft Length | 3 in |
| Max. Ambient Temp. | 113 deg F |
| Weight | 14.2 lb |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
